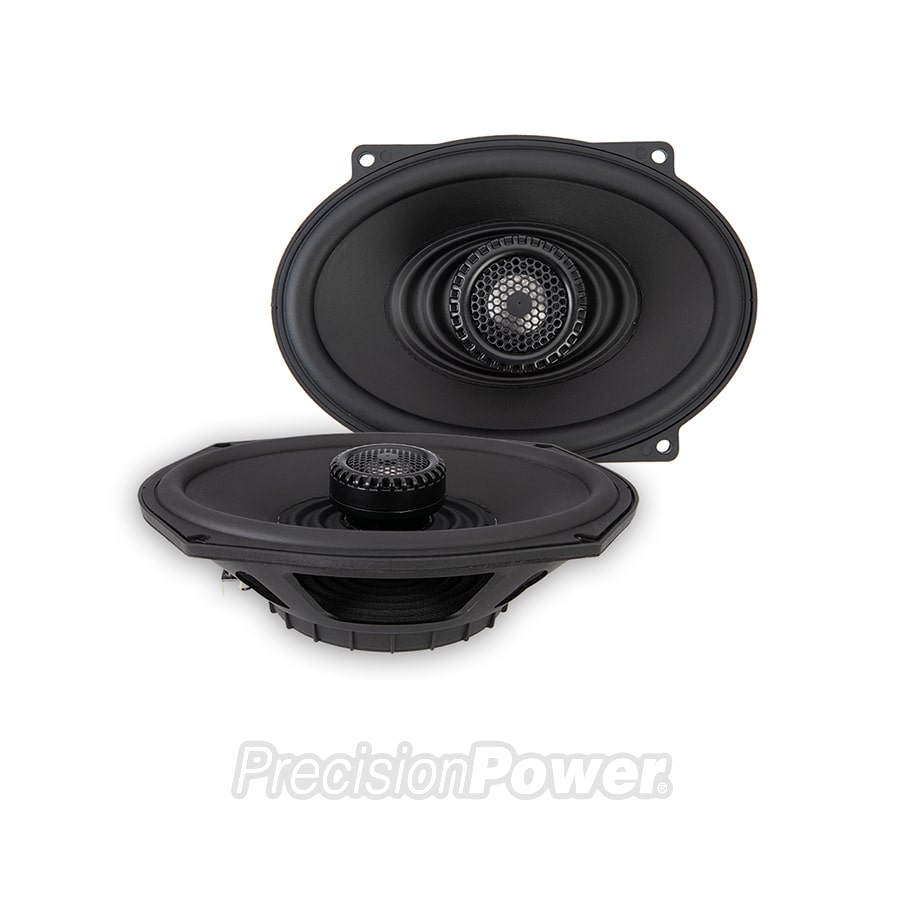

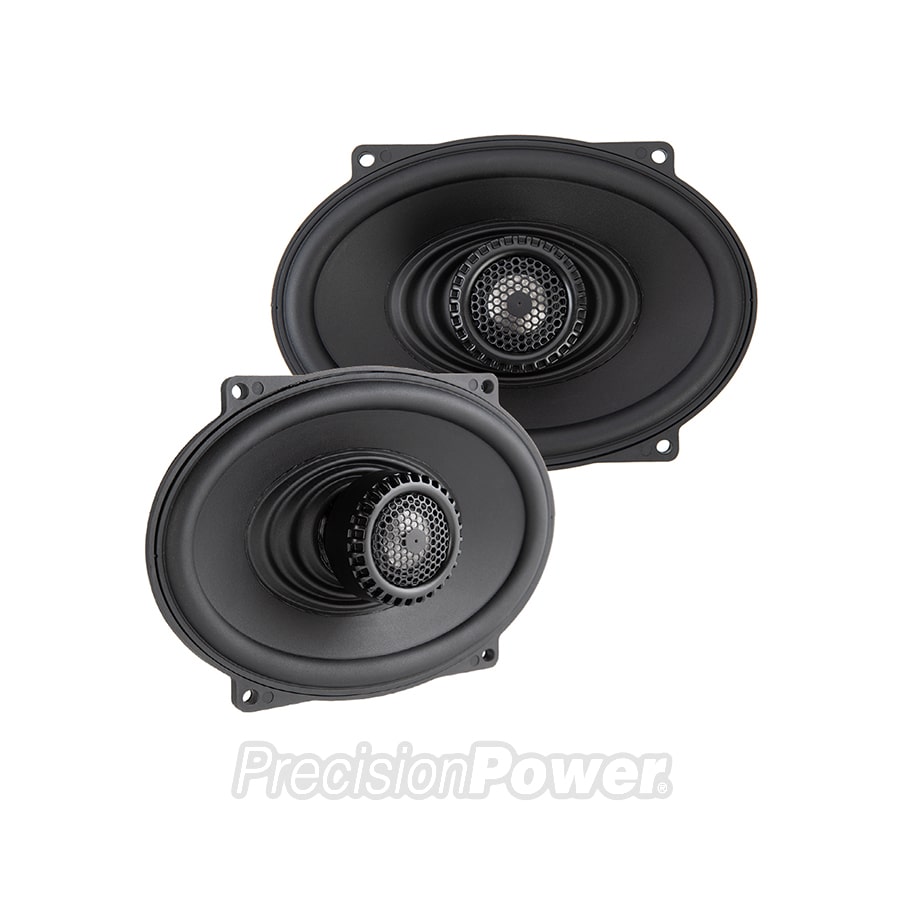

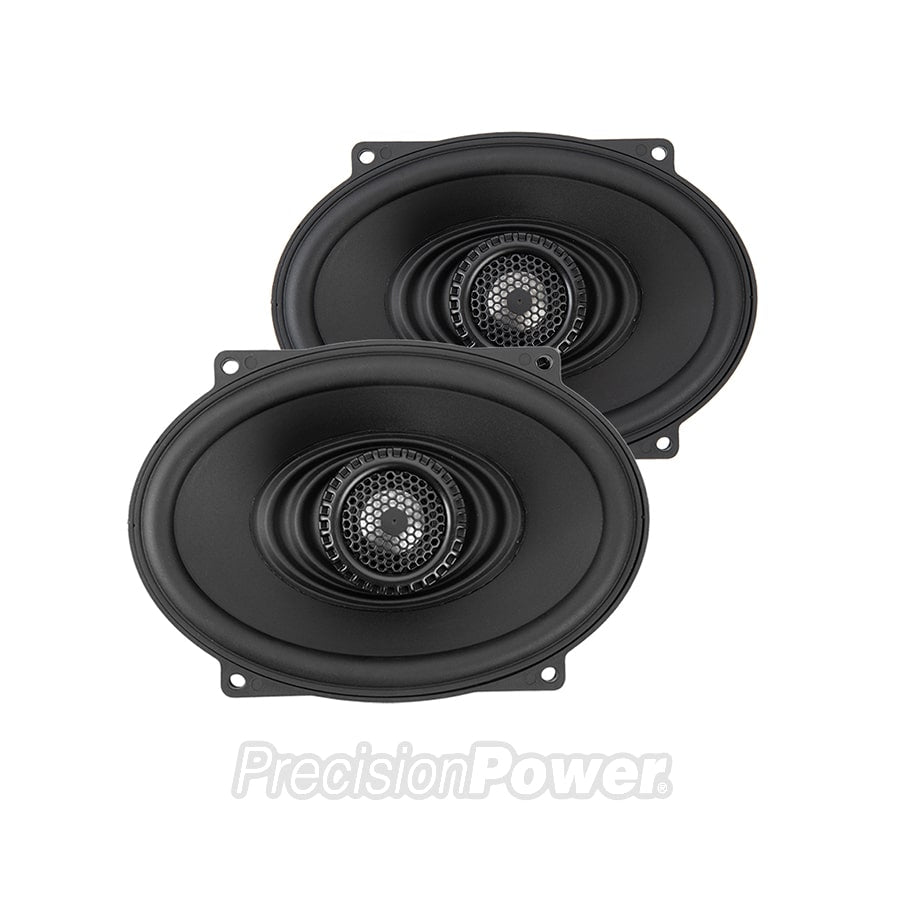

PPI Motorcycle - 5x7 Motorcycle Speakers - 2Ω Replacement Upgrade
Application Driven
The 5 x 7 & 6 x 9 MAS size speakers are unique, with an inverted magnet construction, and the coaxially mounted tweeter housing helps with heat dissipation (Magnet relocated to the front of the speaker). Patent Pending design helps with thermal management for motorcycle applications to extract heat from the speaker through the front tweeter pod away from the saddlebag with ambient air.
Thermal Management
Diecast Aluminum tweeter housing draws thermal build-up away from the internal hidden neodymium speaker magnets. Traditional neodymium magnet speakers trap heat inside the saddlebag and that’s not what we wanted. You can say goodbye to damaging jackets or even worse speaker failure.
Quality Construction
1-inch Titanium dome tweeter withstands corrosion with a high strength-to-density ratio. The beautiful impermeable Polypropylene cone was designed rugged and weather resistant.
MAS Speaker Product Highlights
Manufactured w/ Industrial Grade Materials Optimized for Harsh Environments
Glass Fiber Reinforced ABS Frame for Impact Absorption & Thermal Stability
Impermeable Polypropylene Cone is Mechanically Rugged & Heat Resistant
Co-Molded Low-Density Santoprene Surround Chemically Bonded to Cone
Titanium Dome Tweeter Resists Corrosion w/ High Strength-to-Density Ratio
Low Mass Neodymium Earth Element Magnets for Maximum Output
1.25” Oxygen Free Copper Voice Coil on Thermally Absorbent Aluminum Former
1” Titanium Wide Dispersion High Output Hemispherical Dome Tweeter
2-Ohm for Stock Replacement or 4-Ohm for Custom Installation Applications
Integrated 6dB High-Pass Crossover Protects Tweeter From Harmful Frequencies
92dB (1w/1m) SPL Efficiency / 60-22kHz Frequency Response
75W RMS Power Rating / Mounting Depth: 2.00″
| MAS.572 Replacement Upgrade | 5″ x 7″ 2Ω |
| MAS.574 – Not Available – | N/A |
| RMS / Max Power (Watts) | 100 / 200 |
