The next step in motorcycle performance, featuring simple plug-and-play installation creates the best in class on-bike audio experience.
Features/Benefits:
Plug-and-Play Design: Designed to work right out of the box. Everything is included to make for easy installation and all to ensure less time in the garage and more time out riding.
Element Ready™: Purpose built for the harsh motorcycle environment. The speakers and amplifier are designed to stand up to water, dirt, UV, and motorcycle vibration, ensuring that your audio system will stand the test of time.
Please review FITMENT tab before purchasing.
UNRELENTING PERFORMANCE

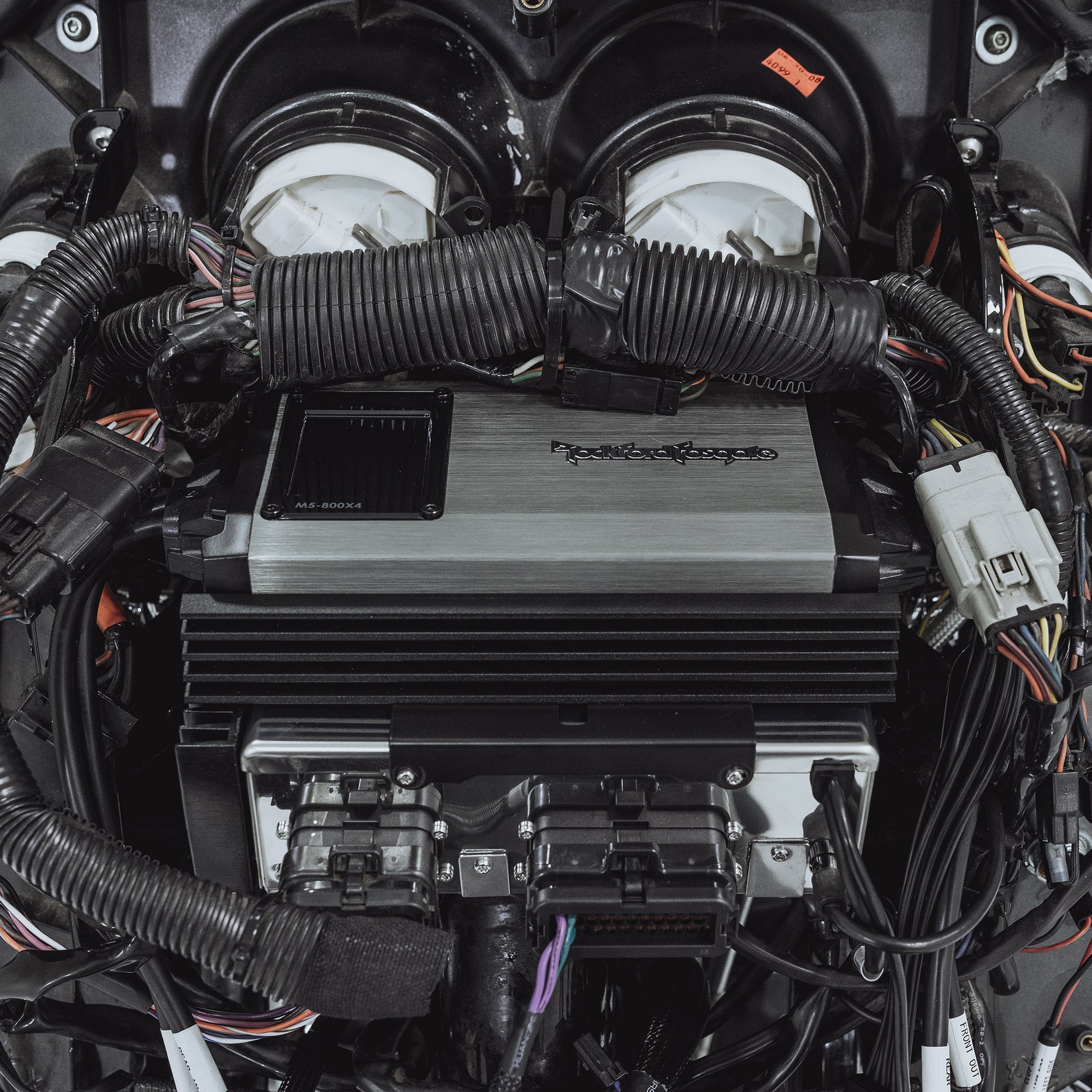

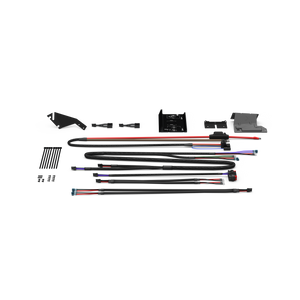

This complete kit includes a heatsink, bracket, hardware and wiring harness needed to install the M5-800X4 amplifier on select 2014 and newer Harley-Davidson® motorcycles. T-Harness allows for complete electrical integration without cutting or modifying factory wiring. Includes Boom!™ Audio bypass plugs for factory Harman Kardon® amplified systems and a Digital Signal Processor loop-thru for adding a DSR1 signal processor.
You must flash your factory radio to use this kit. Refer to our FITMENT tab before purchasing.
FEATURES AT A GLANCE
- FULL spec cable - meets or exceeds AWG (American Wire Gauge) requirements
- Plug and Play design for easy installation
- 100% Pure Crystal-Oxygen Free Copper (PC-OFC)
- Designed for use with 1998-2013 Harley-Davidson® Motorcycles
- Y-adaptors supports expansion of speakers in lower fairing, saddlebag, or Tour-Pak®
- Designed for use with M5-800X4 amplifier (sold separately)
- Includes mounting brackets for Bat Wing and Shark Nose fairings
- Includes rear speaker output harness for connection of rear speakers
- Compatible with TM400X4ad amplifier (sold separately)
CTA-2015 |
Rockford Fosgate cables conform to the CTA-2015 industry standard. The standard specifies the exact amount of copper needed to indicate a specific wire diameter or gauge size (8 AWG, 4 AWG, etc). Some manufacturers substitute thicker insulation for copper. With Rockford Fosgate, you get exactly what you pay for. |
Includes Power Wire |
This amplifier kit includes power wire by including necessary cable for both B(+) and GND(-) connections. Additionally, amplifier kits include remote turn-on power wire. All cables in this kit conform to the CEA-2015 AWG specification. |
Includes Fused Dist. |
This amplifier kit includes fused distribution. It utilizes a stand-alone fuse holder that can be installed in a convenient place under the hood. |
| YEAR | MAKE | MODEL | FAIRING |
|---|---|---|---|
| 2006-2013 | Harley Davidson® | Street Glide® Ultra | Bat Wing |
| 2006-2013 | Harley Davidson® | Street Glide® | Bat Wing |
| 1998-2013 | Harley Davidson® | Electra Glide® | Bat Wing |
| 1998-2013 | Harley Davidson® | Road Glide® | Shark Nose |
| 1998-2013 | Harley Davidson® | Road Glide® Ultra | Shark Nose |
Required Amplifier
 AMPLIFIER MODEL |
DESCRIPTION |
|---|---|
| M5-800X4 | Element Ready™ IPX6 800 Watt 4-Channel Amplifier |
| TM400X4ad | Power Marine 400 Watt Class-ad 4-Channel Amplifier |
We always recommend a qualified technician install these systems.
Rockford Fosgate Canada Limited 2-Year Warranty
Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.
