8 gauge complete power, ground and signal installation kit for an amplifier.

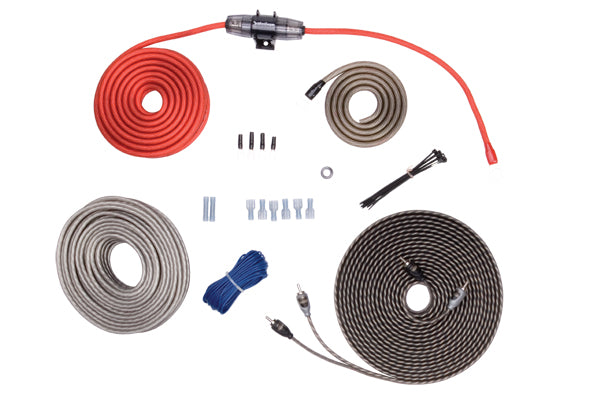

Kit includes 17 feet of 8 AWG power wire, 3 foot of 8 AWG ground wire, 30 feet of 16 AWG speaker wire, (1) 16 feet twisted pair RCA, AGU fuse holder and fuse, 20 feet of remote wire, 40 Amp fuse.
FEATURES AT A GLANCE
- 8 AWG (8.36mm²) 735 strands
- 16 AWG (1.31mm²) 65 strands
- Includes appropriate wire termination hardware
- FULL spec cable - meets or exceeds AWG (American Wire Gauge) requirements
- 100% Pure Crystal-Oxygen Free Copper (PC-OFC)
- 1 Year Warranty
Fuse Type AGU
Battery PWR/GND Gauge 8 AWG
Amplifier PWR/GND Gauge 8 AWG
Speaker Wire Gauge N/A
Fuse Size 60 Amp
Dual Amp Installation Kit No
CTA-2015 |
Rockford Fosgate cables conform to the CTA-2015 industry standard. The standard specifies the exact amount of copper needed to indicate a specific wire diameter or gauge size (8 AWG, 4 AWG, etc). Some manufacturers substitute thicker insulation for copper. With Rockford Fosgate, you get exactly what you pay for. |
Includes Power Wire |
This amplifier kit includes power wire by including necessary cable for both B(+) and GND(-) connections. Additionally, amplifier kits include remote turn-on power wire. All cables in this kit conform to the CEA-2015 AWG specification. |
Includes Fused Dist. |
This amplifier kit includes fused distribution. It utilizes a stand-alone fuse holder that can be installed in a convenient place on the motorcycle. |
Includes Speaker Wire |
This amplifier kit includes speaker wire. These cables connect the amplifier to the speakers. All wires in this kit conform to the CEA-2015 AWG specification. |
Includes RCA Cables |
This amplifier kit includes RCA patch cables. These are the necessary cables used to transfer low-level signal from the source unit to the amplifier, typically located in the rear of the vehicle. |
