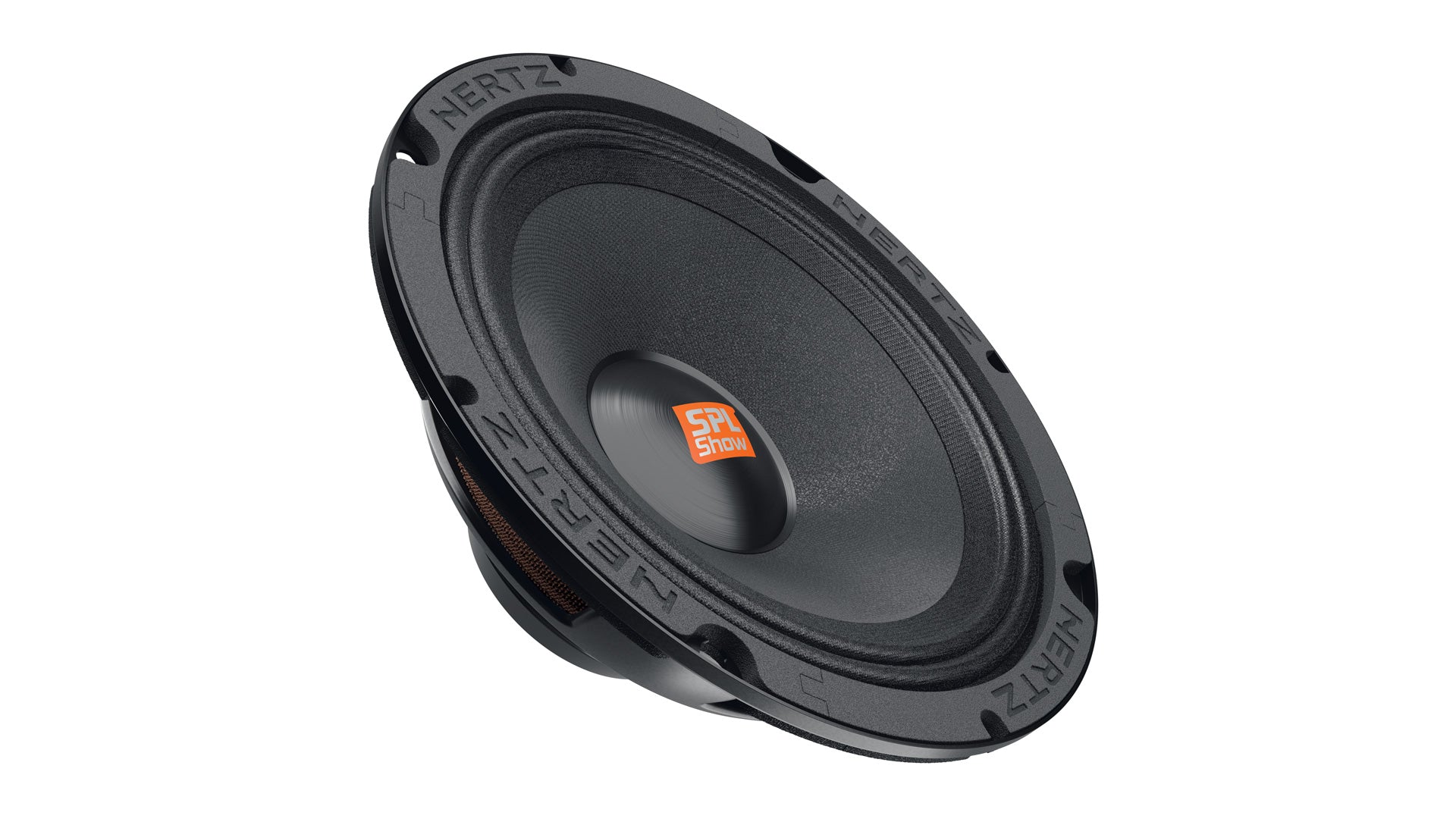

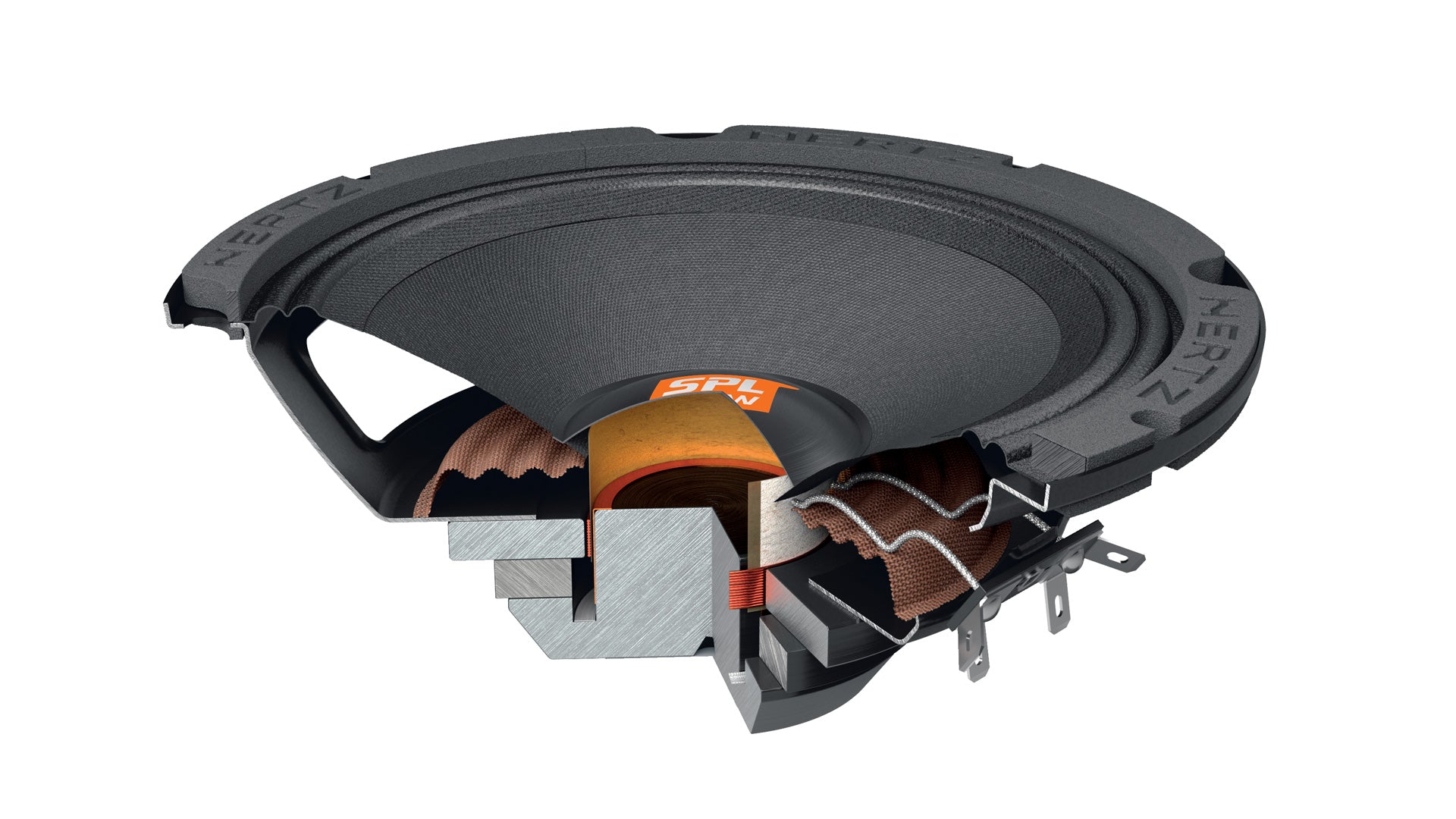

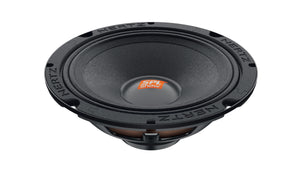

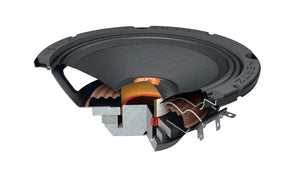

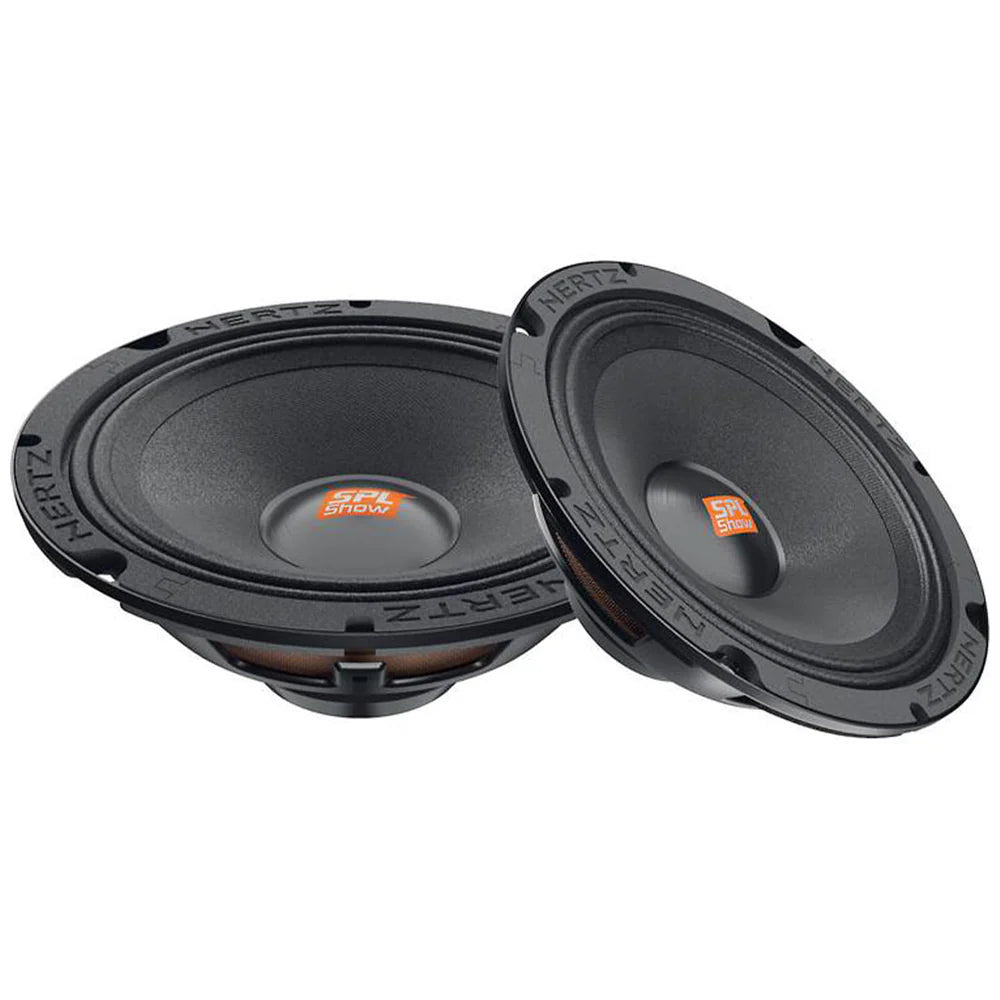

New SV 165 NEO features compact dimensions and light weight preserving excellent performance thanks to the use of Neodymium N38 H for the motor units. To allow a safe outdoor use without discoloration over time, cones has waterproofing and anti-UV treatment and motor units is painted with cataphoresis with insulated lead-wires to avoid oxidation. The terminals and mounting holes are compatible for installation on Harley-Davidson motorbikes!
- Compact dimensions and light weight preserving excellent performance thanks to the use of Neodymium N38 H for the motor units
- Cones waterproofing and anti-UV treatment to allow safe outdoor use without discoloration over time
- Motor units treated with cataphoresis and insulated lead-wires to avoid oxidation
- Terminals and mounting holes compatible for installation on Harley-Davidson motorbikes
NATURE PROOF
Compact and lightweight, the new spl neo systems are extremely loud and do not fear nature elements for an unlimited fun in every condition!
| Component | SPL Midrange |
| Size mm (in.) | 165 (6.5) |
| Power Handling - Continuous W | 150 |
| Power Handling - Peak W | 400 |
| Impedance Ohm | 4 |
| Voice Coil Ø | 38,6 (1.5) |
| Frequency Response Hz | 100 ÷ 10k |
| Magnet size D x d x h mm (in.) | 70 x 45 x 7 (2.76 x 1.77 x 0.28) |
| Weight of one speaker kg (lb.) | 0,9 (1.98) |
| Magnet | Neodymium |
| Cone | Water repellent pressed paper |
| D mm | 128 |
| Re Ohm | 3,2 |
| Fs Hz | 110 |
| Le mH | 0,06 |
| Vas I | 3,55 |
| Mms g | 14,7 |
| Cms mm/N | 0,15 |
| BL T*m | 6,5 |
| Qts | 0,58 |
| Qes | 0,62 |
| Qms | 8,7 |
| Spl dB | 97 |
Physical Specs
| A | 167,2 mm | 6.58 in. |
| B | 143,3 mm | 5.64 in. |
| C | 65,2 mm | 2.57 in. |
| D | 57,1 mm | 2.25 in. |
Frequency response
