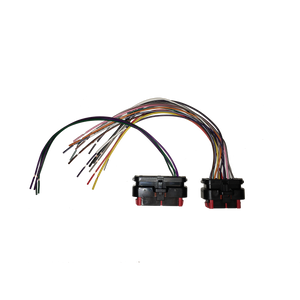

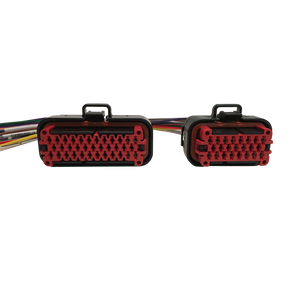

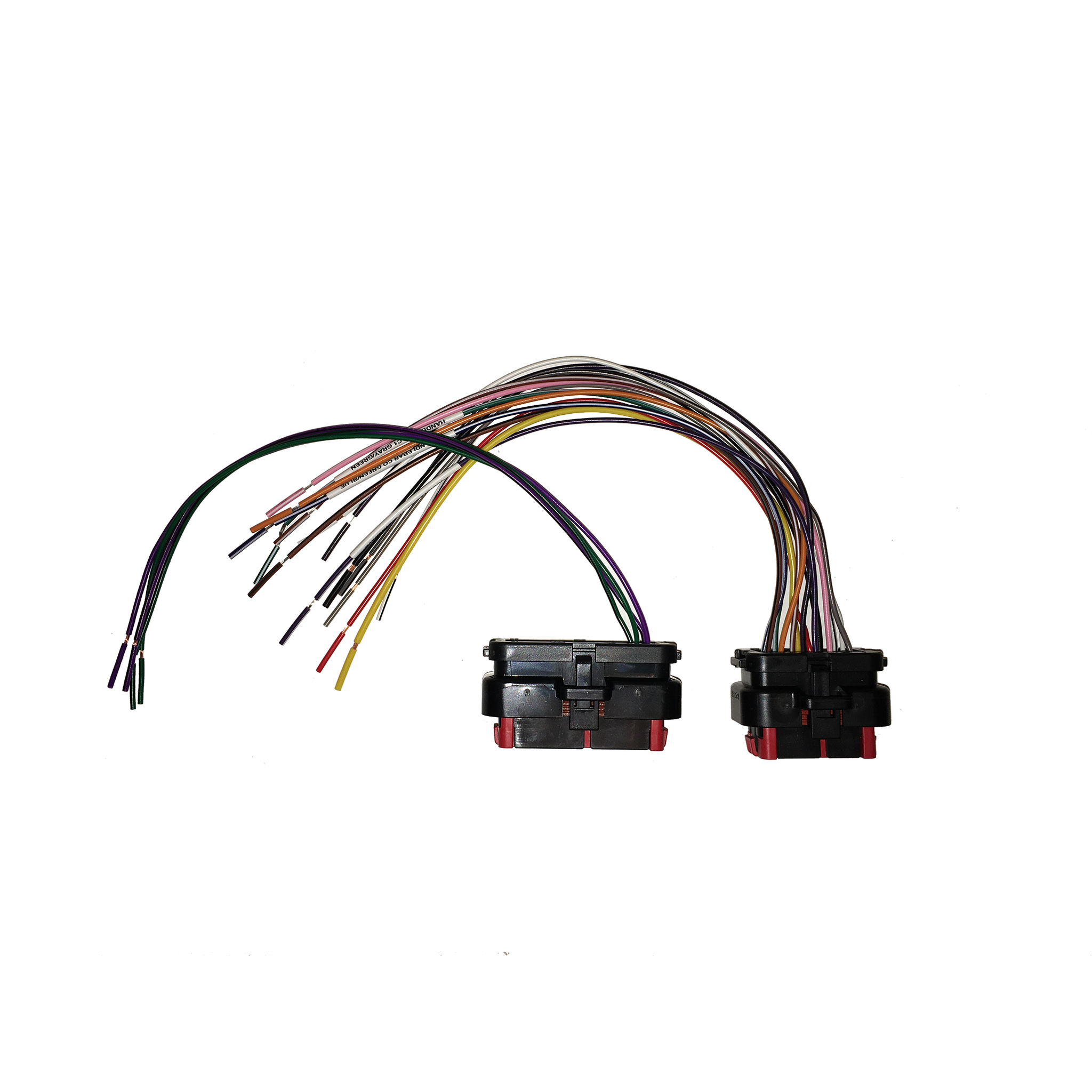

Replacement harnesses to operate the PMX-HD9813 source unit. To be used for dealer displays or for installations where the factory Harley-Davidson® harnesses have been cut off or damaged beyond repair.

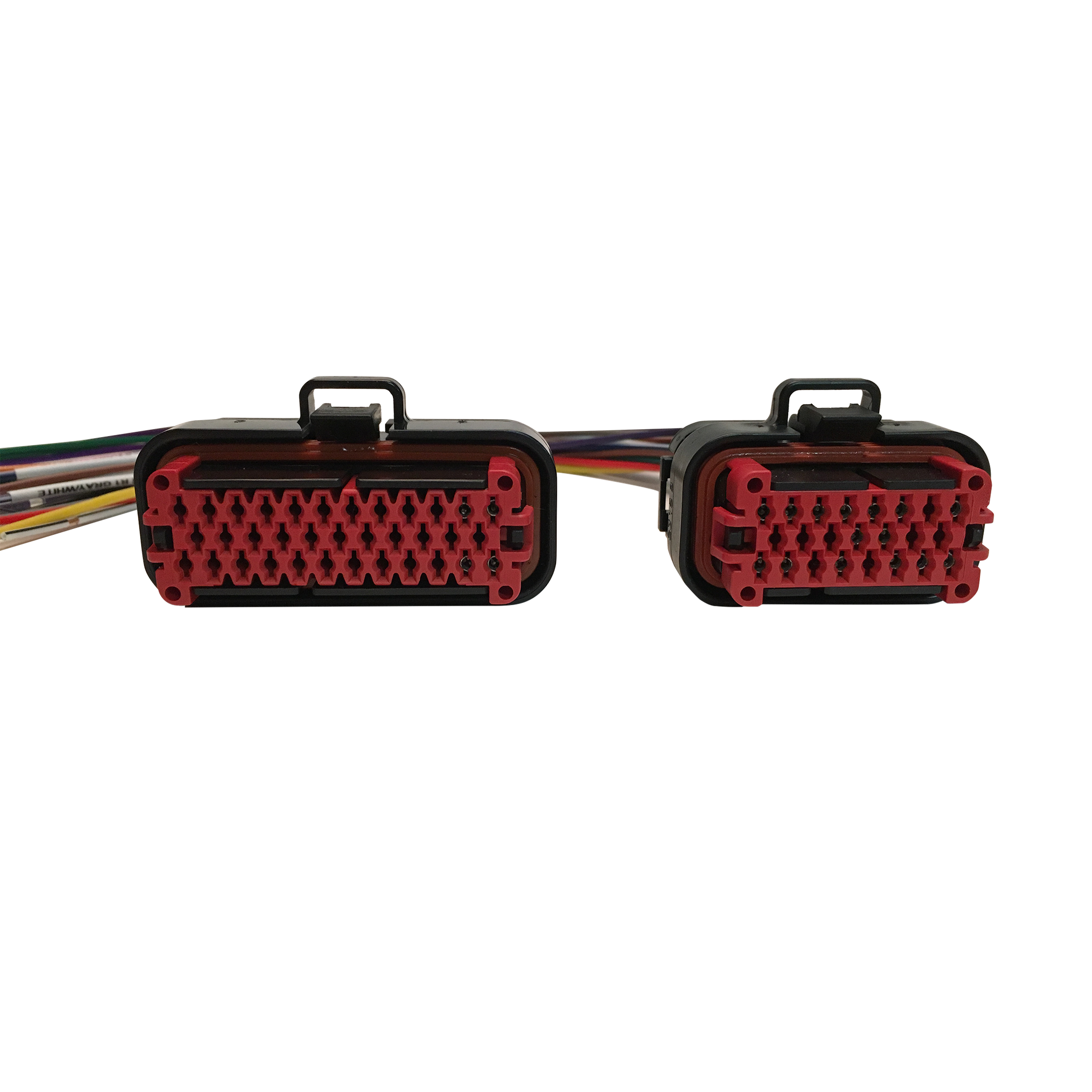

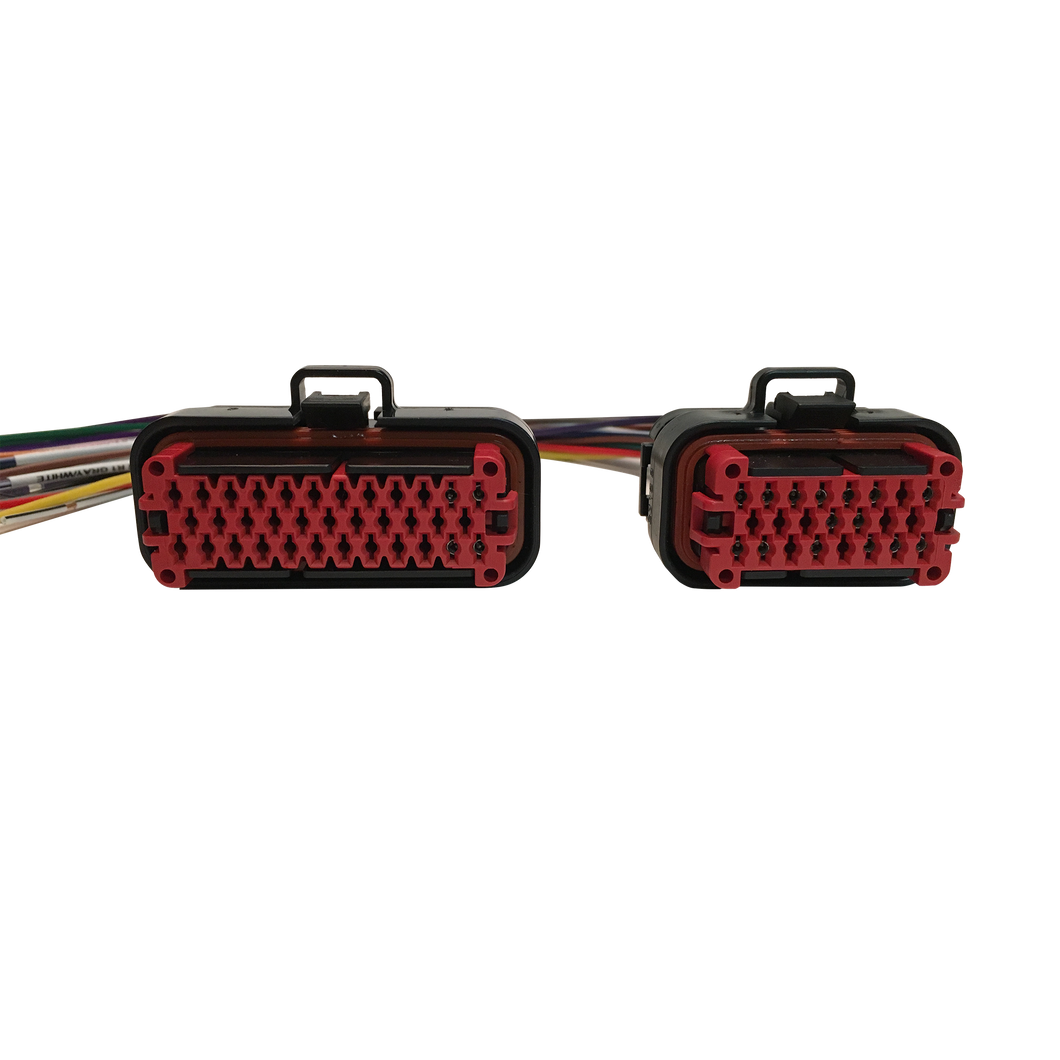

The SMALL connector harness contains power, ground, ACC, illumination, and front speaker outputs. The LARGE connector harness contains rear speaker outputs. Harnesses are sold as a pair. We are providing these replacement harnesses for instances such as:
- Customers with aftermarket radios where the OEM plug(s) have been cut-off.
- Customers adding rear speakers to a motortcycle that did not have rear speakers.
FEATURES AT A GLANCE
- Harley-Davidson compatible connectors
- Supplied with 23-pin harness (power & front speakers)
- Replacement harnesses for PMX-HD9813
- Moisture-proof seals
- Supplied with 35-pin harness (rear speakers)
- Sold in pairs (2 each)
See FITMENT tab before purchasing.
The PMX-HD9813 source unit utilizes the factory wiring and therefore wiring harnesses are not supplied.
POWER
B+ (12v) Yellow
Switched (+12v) Red
Ground (-) Black
FRONT SPEAKERS
LEFT (+) White
LEFT (-) White/Black
RIGHT (+) Grey
RIGHT (-) Grey/Black
REAR SPEAKERS
LEFT (+) Green
LEFT (-) Green/Black
RIGHT (+) Purple
RIGHT (-) Purple/Black
See FITMENT tab before purchasing.
| Year | Model | Description |
|---|---|---|
| 1998—2013 | PMX-HD9813 | Digital Media Receiver for 1998-2013 Harley-Davidson |
Rockford Fosgate Canada Limited 2-Year Warranty
Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.
