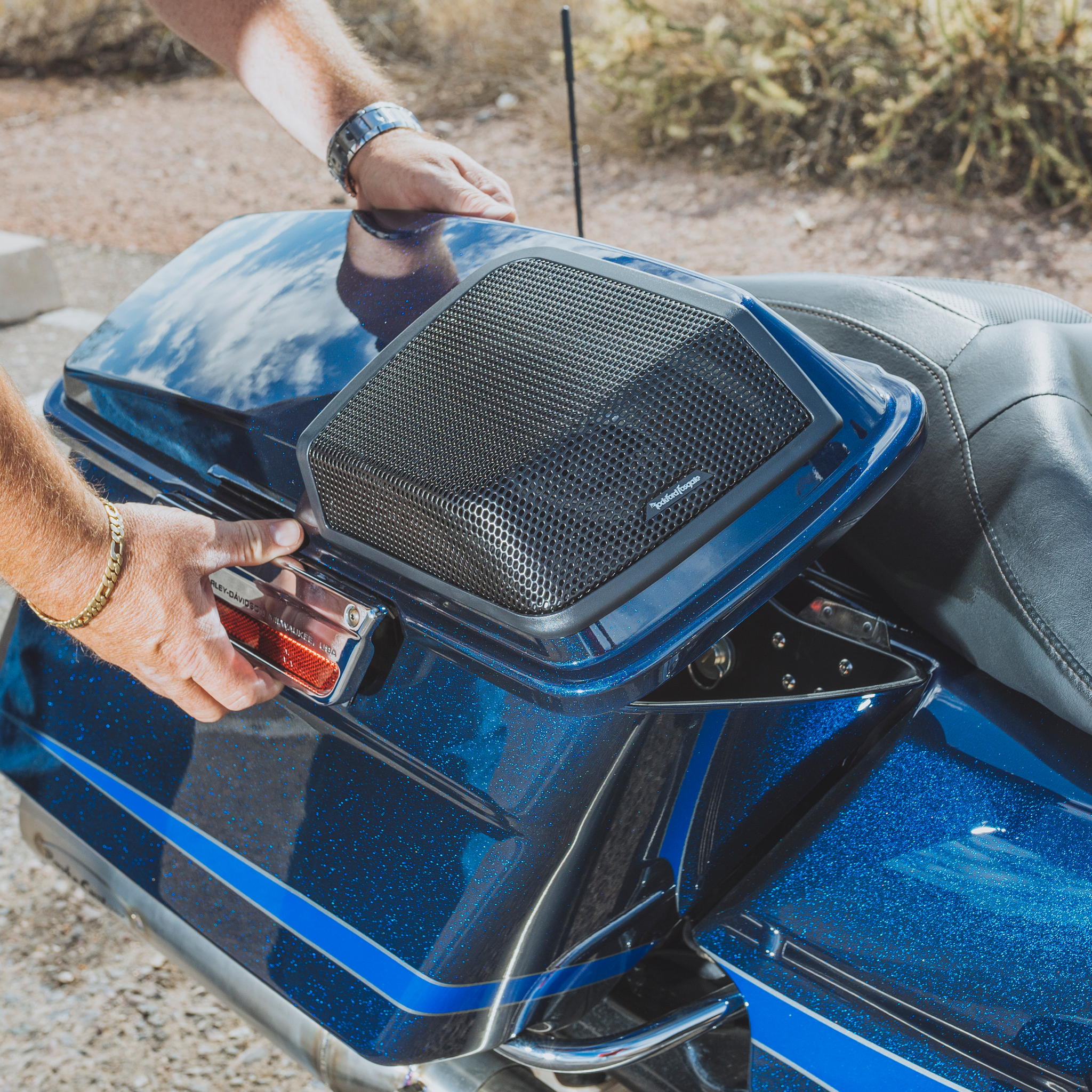

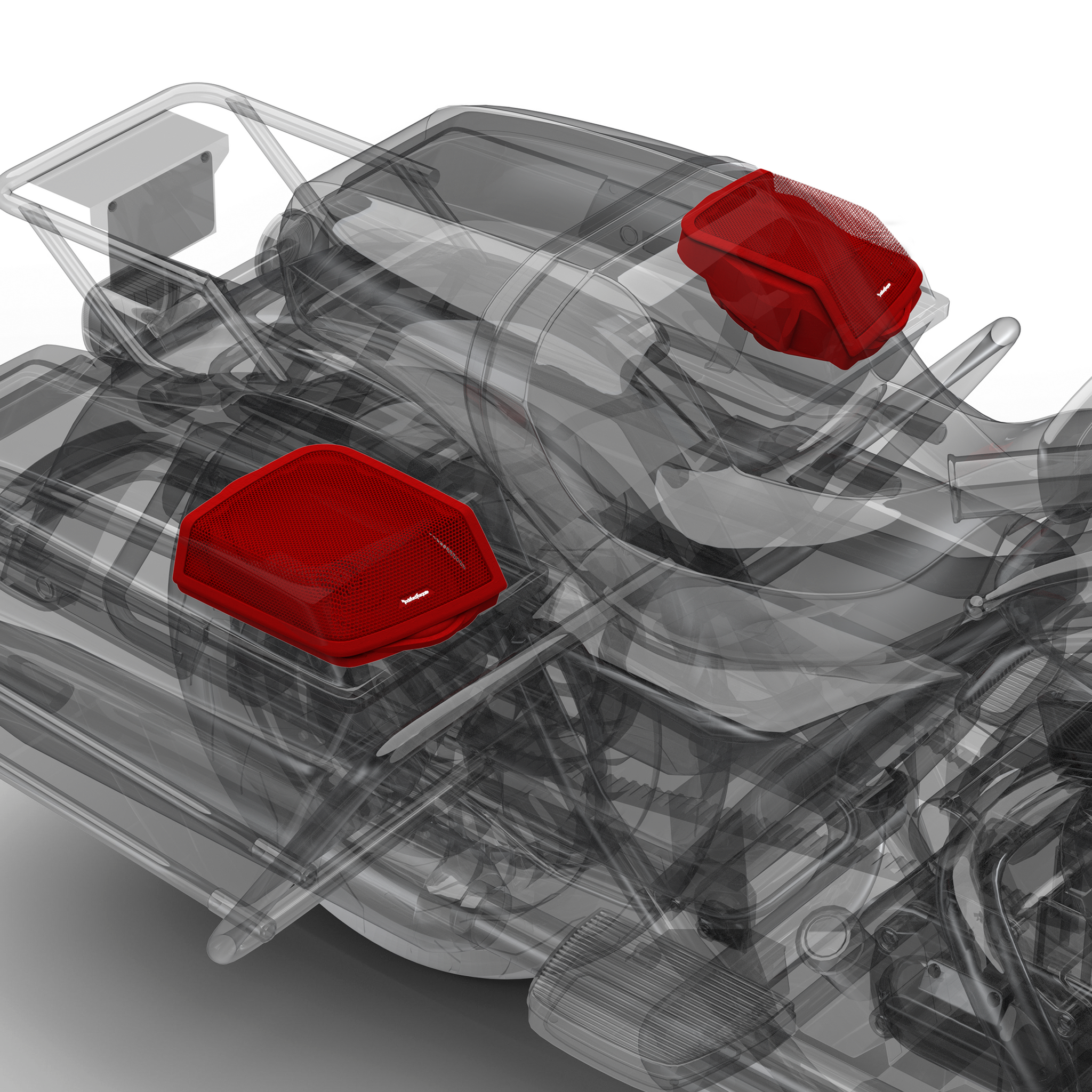

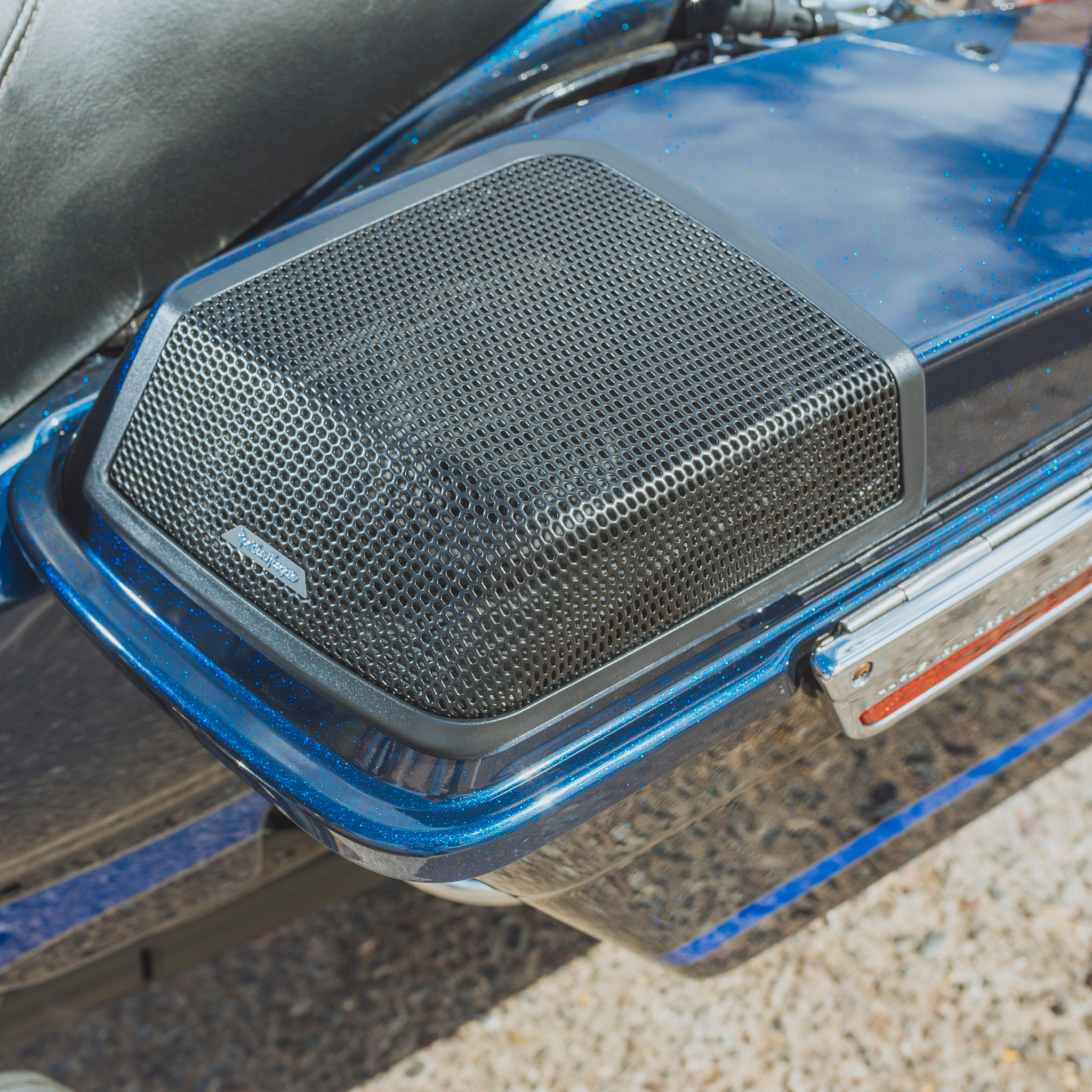

Retrofit kit allows addition of rear speakers on your existing factory bag lids and plug directly into a Rockford Fosgate front audio kit that utilizes the Power T400X4ad, TM400X4ad, and M5-800X4 4-channel amplifier. Eliminates need to paint and color match. Not designed for factory amplifiers. Refer to our COMPATIBILITY chart to verify fitment before purchasing.
If you need more than just two speakers and want to really feel your music while riding then check out these add-on bag lid audio solution. Centered around our TMS69 6x9" speaker this kit is designed to work with existing OEM bag lids. This means no extra parts to purchase or custom paint schemes to match. Easy to install using our included cutting template and two-piece mounting system you can quickly add on to an existing or new fairing audio kit using with the included plug and play harness. This system is designed to plug directly into the Rockford Fosgate Power T400X4ad or TM400X4ad 4-channel amplifier. Not designed for factory amplifiers.
FEATURES AT A GLANCE
- Direct Connect Wiring Harness to Rockford Fosgate Amplifiers
- Designed for use with existing 1998-2013 Rockford Fosgate Stage kits
- Designed for use with 1998-2013 Factory Harley-Davidson® Hardshell Bags
- Ultra‐High Temperature Glass Reinforced Polymer Frame
- Painted Stamped Steel Grill with ASA Plastic Frame for UV Protection
- Leave 2" minimum clearance under speaker magnet when packing bags
- Patent Pending

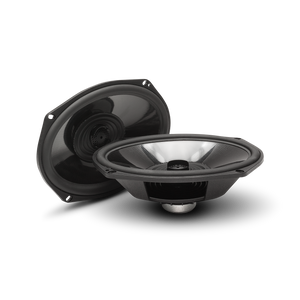

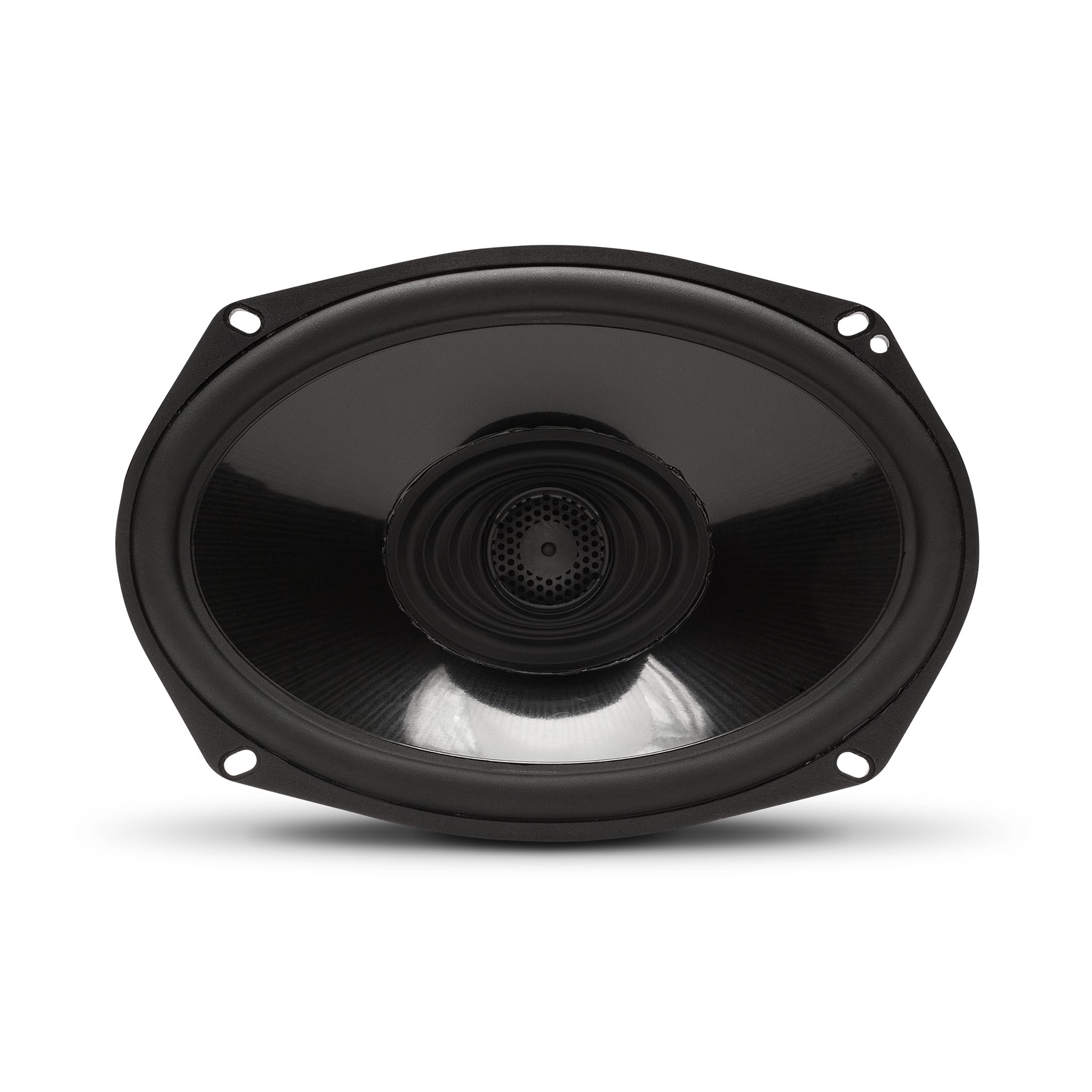

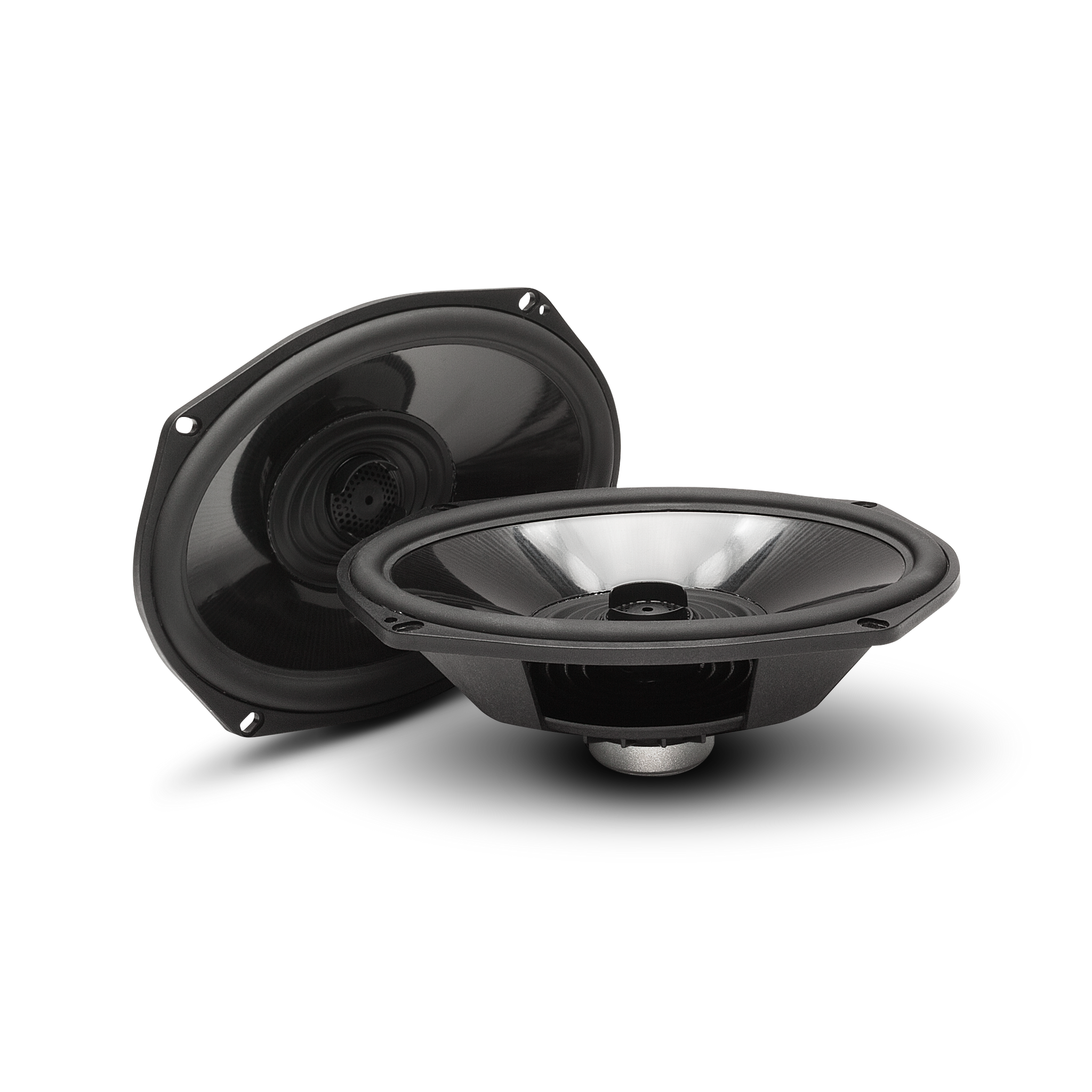

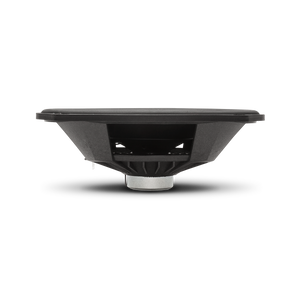

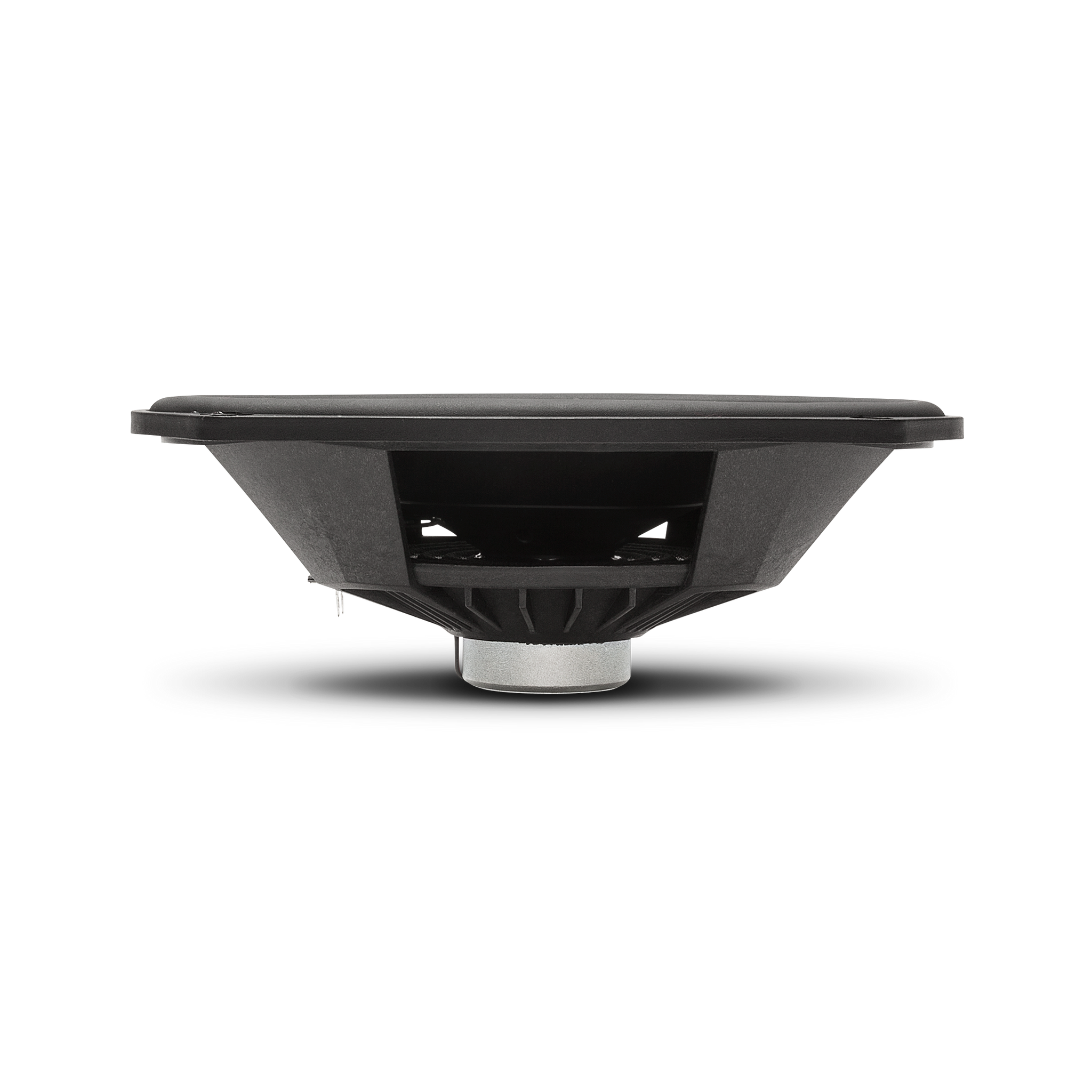

- TMS69: 6x9” Element Ready™ 2-way speakers with integrated phase-aligned 25 mm tweeter
- Includes all Installation Hardware and Accessories
- Includes Custom Cut Out Guide
- Sandwich Clamping Gasket Design for Environmental Seal

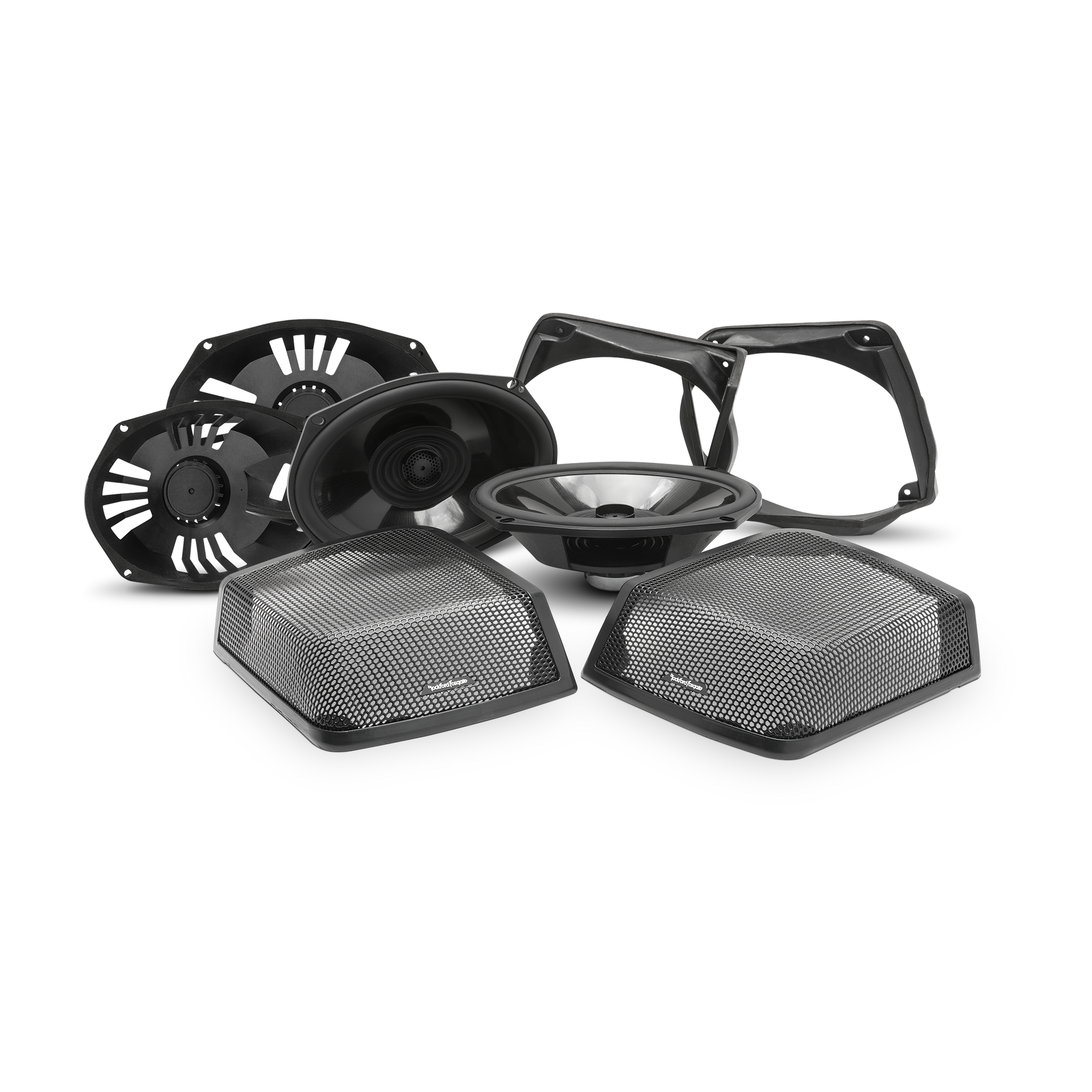

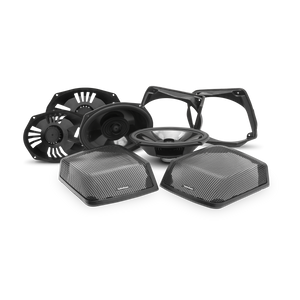

What's In The Box
- (2) TMS69 Speakers
- (2) Speaker Grilles

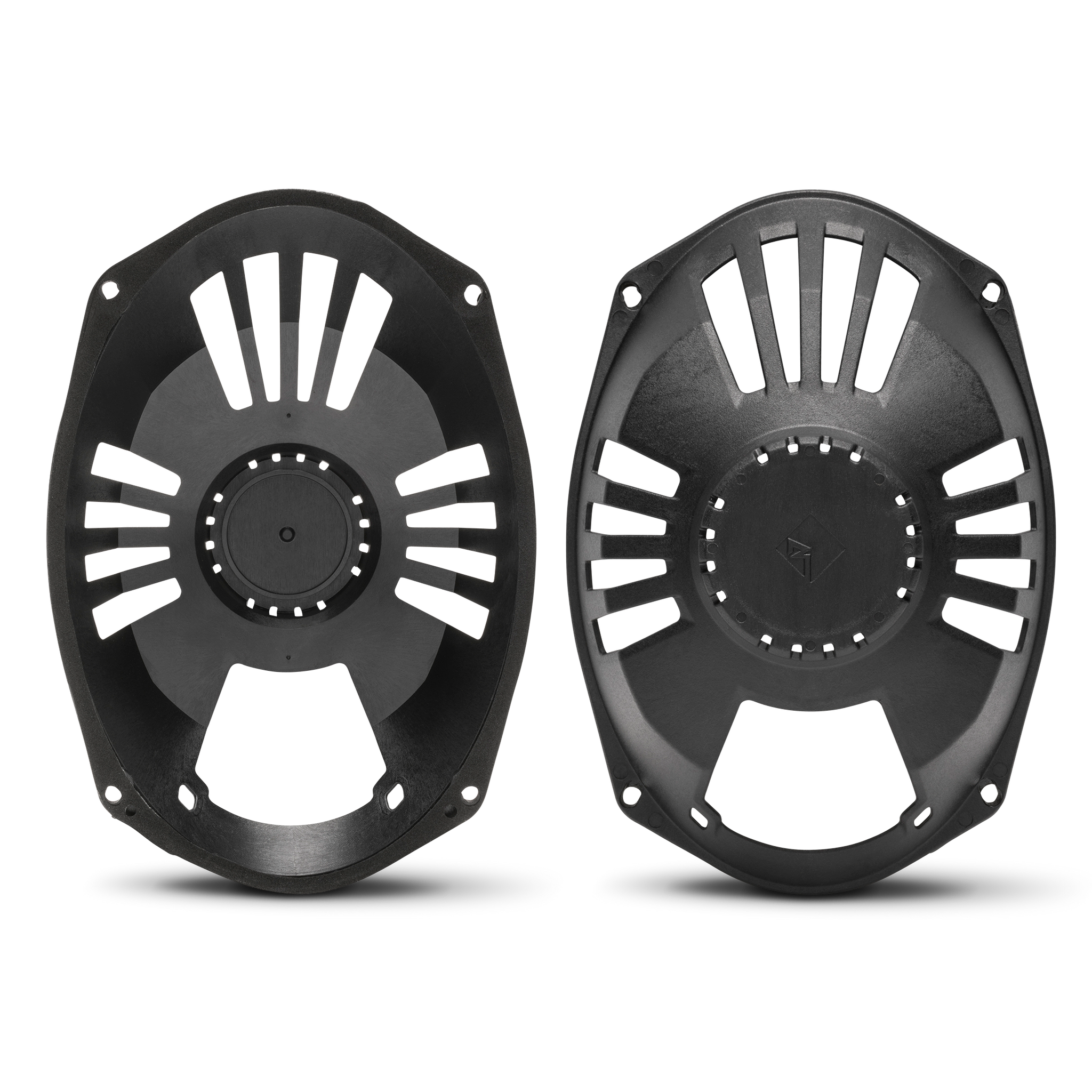

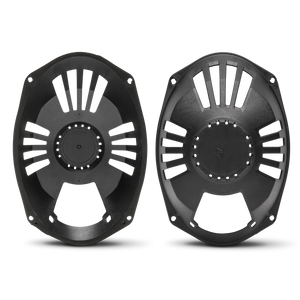

- (2) 6"x9" Basket Protectors

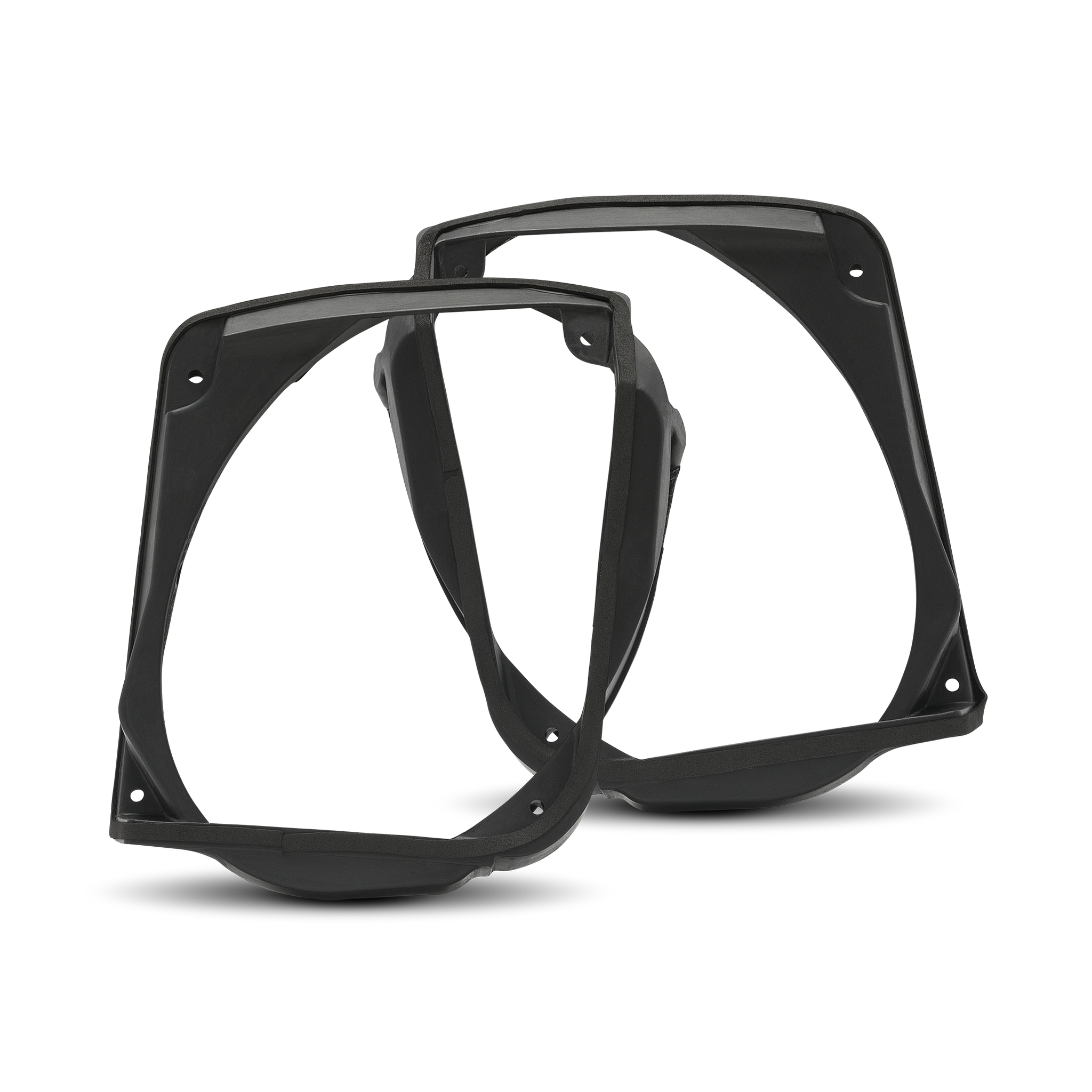

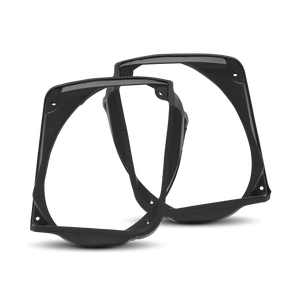

- (2) Mounting Rings
- (2) Cutting Templates
- (1) Main Harness
- (2) Saddlebag Harnesses
- Plastic Wire Tie Wraps
- Plastic Cable Tie Mounts
- (8) 1125-77147-01, Phillips Black Oxide Steel Screw with Washer, M4x1.4, 23mm L
- (12) 1125-62036-01, Pan Head Phillips Black Oxide Steel Screw, Plastic Cut, M4x1.4, 12mm L

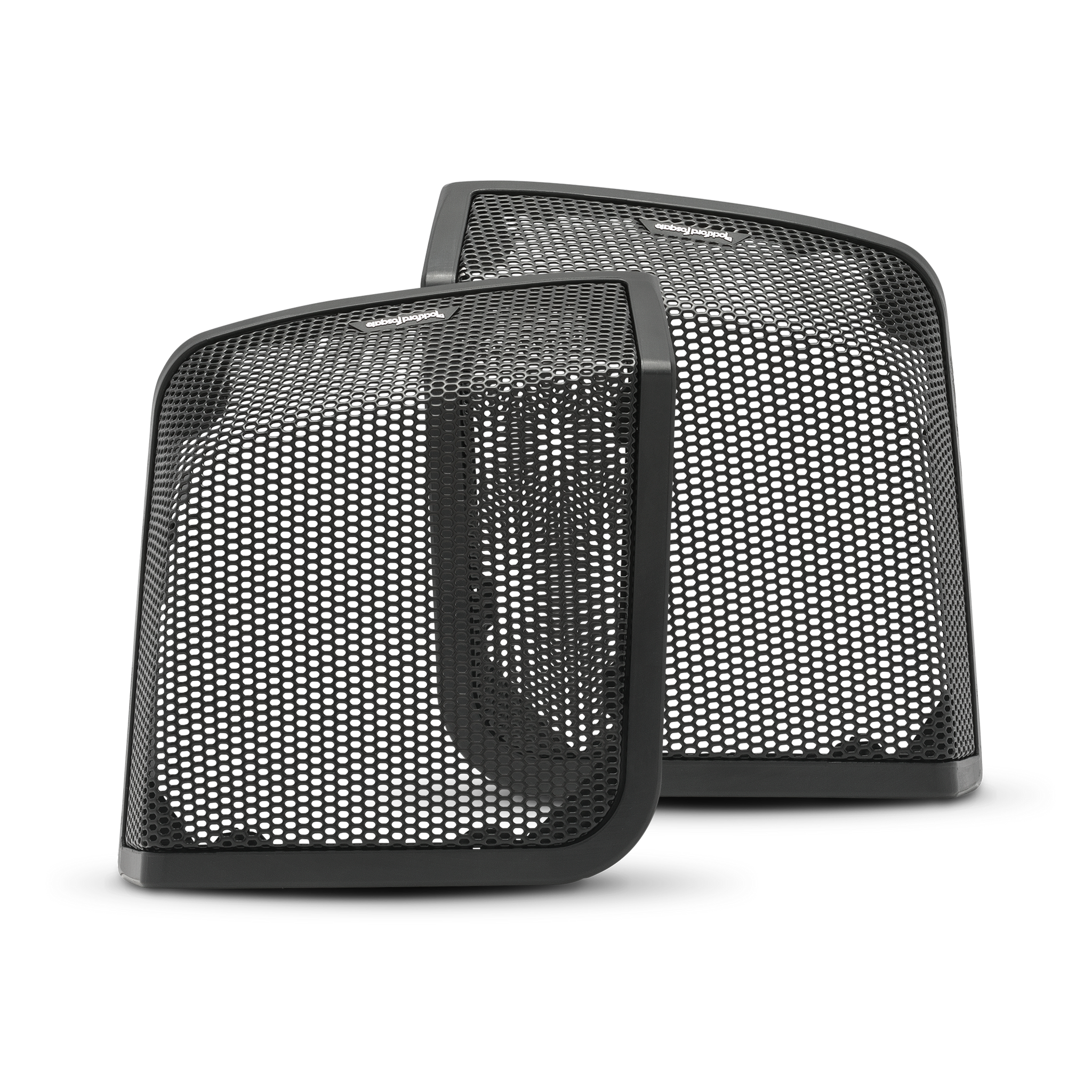

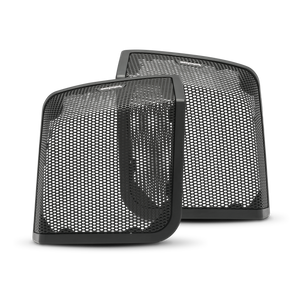

- Grill/Trim Ring
- Mounting Hardware
- 1998—2013 Harley-Davidson® Road King® FLHR
- 2002—2003 Harley-Davidson® Screaming’ Eagle® Road King® FLHRSEI
- 2013 Harley-Davidson® CVO Road King® FLHRSE5
- 1998–2013 Harley-Davidson® Electra Glide® Standard FLHTI Bat Wing
- 1998–2013 Harley-Davidson® Electra Glide® Ultra Classic® FLHTCU Bat Wing
- 2010–2013 Harley-Davidson® Electra Glide® Ultra Limited FLHTK Bat Wing
- 1998–2013 Harley-Davidson® Road Glide® FLTR Shark Nose
- 2012 Harley-Davidson® Road Glide® Custom FLTRX Shark Nose
- 1998-2013 Harley-Davidson® Road Glide® Ultra FLTRU Shark Nose
- 2006–2013 Harley-Davidson®Street Glide®FLHX Bat Wing
1 Factory Radio from Harley-Davidson® must be flashed. Read advisory for more information.
2 H-D® Power Lock for touring luggage not compatible with 6x9" bag-lid kit.
3 Saddlebags must be factory Harley-Davidson® ABS plastic to insure proper fitment with bag-lid and subwoofer kits. Fiberglass saddlebags and bag-lids not compatible.
4 Stretched Saddlebags not optimized for kits with subwoofers. Contact technical support for suggested harness brace.
5 Tour-Pak® must be detached in order to install and remove subwoofer enclosures.
NR No Radio equipped from factory.
RF1 RF Stage I: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and saddlebag amplifier.
RF2 RF Stage II: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and saddlebag amplifier.
RF1G2 RF Stage I Gen-2: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and saddlebag amplifier.
RF2G2 RF Stage II Gen-2: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and saddlebag amplifier.
We always recommend a qualified Harley-Davidson technician install these systems. However, if you would like to try to install this yourself here are some great videos about the products, step by step installation videos and tuning guide to help you.
