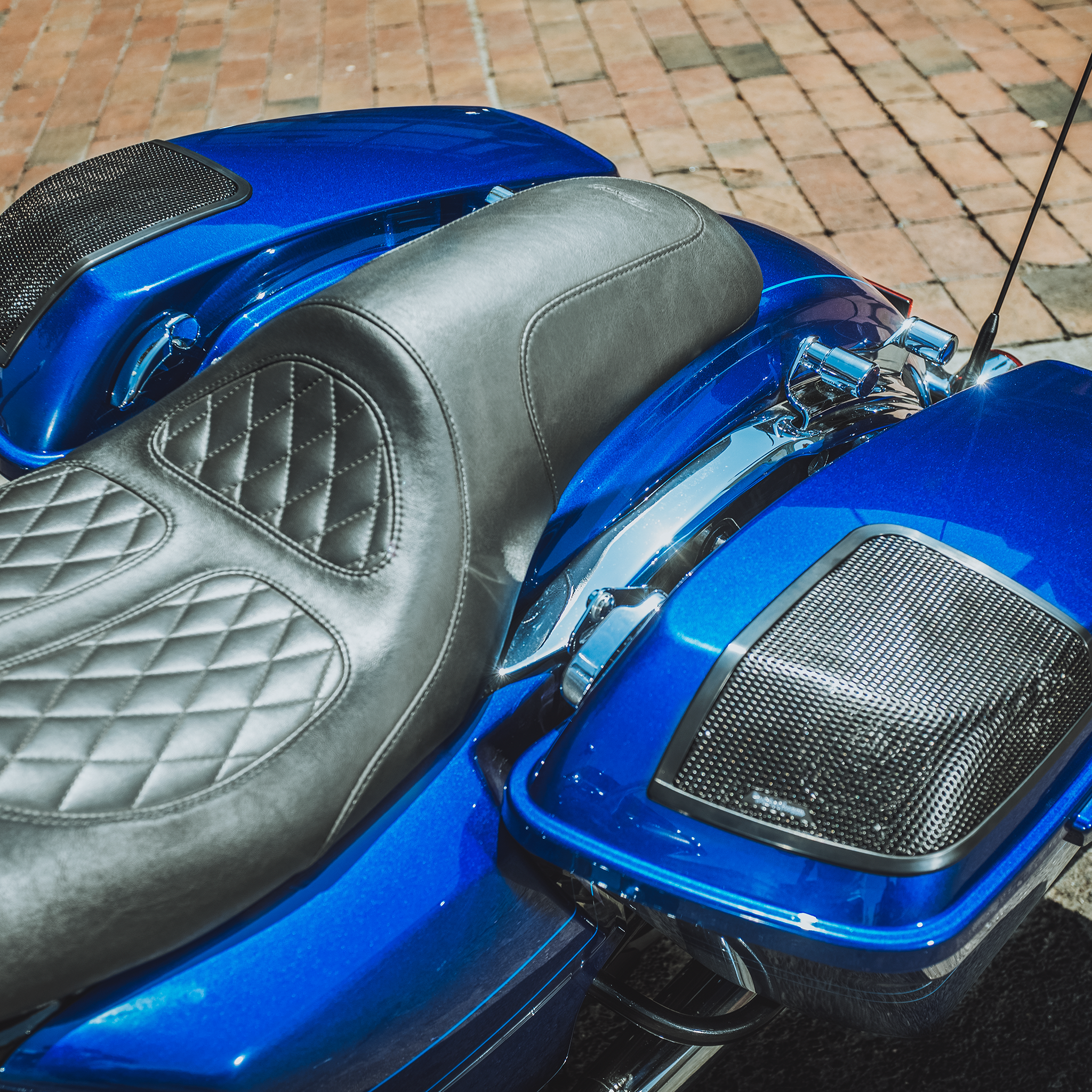

Retrofit kit allows addition of rear speakers on your existing factory bag lids and plug directly into a Rockford Fosgate front audio kit that utilizes the Power T400X4ad, TM400X4ad, or M5-800X4 4-channel amplifiers. Eliminates need to paint and color match. See Specifications tab for compatible motorcycles. You will need to flash your factory radio to use this kit. Not designed for factory amplifiers. Refer to our FITMENT tab before purchasing.

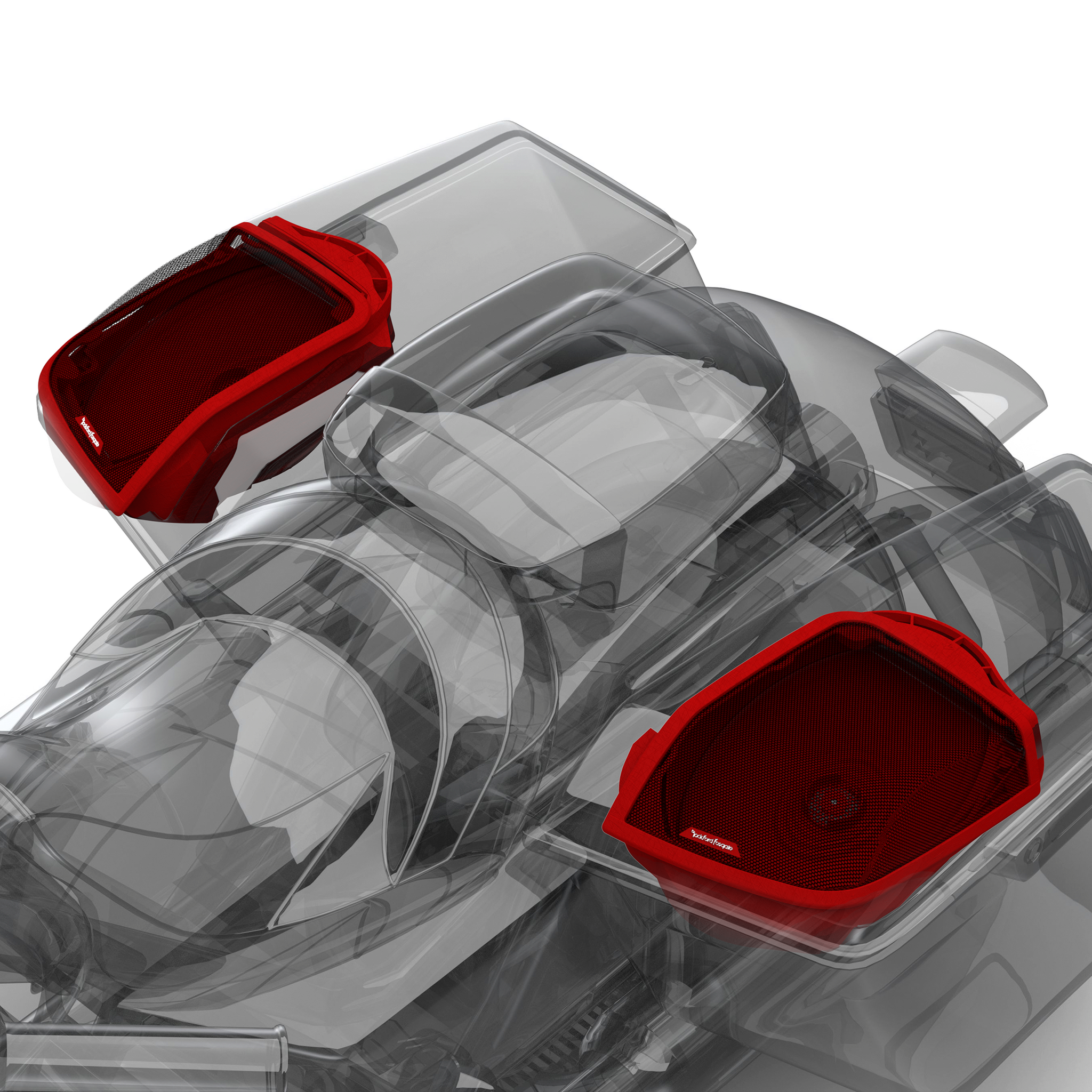

If you need more than just two speakers and want to really feel your music while riding then check out our add-on bag lid audio solution. Centered around our TMS69 6x9" speaker this kit is designed to work with your existing factory bag lids. This means no extra parts to purchase or custom paint schemes to match. Easy to install using our included cutting template and two-piece mounting system you can quickly add on to an existing or new fairing audio kit using with the included plug and play harness. This system is designed to plug directly into the Rockford Fosgate Power T400X4ad or TM400X4ad 4-channel amplifier. Not designed for factory amplifiers.
FEATURES AT A GLANCE
- Designed for use with existing 2014+ Rockford Fosgate Stage kits
- Designed for use with 2014+ Factory Harley-Davidson® Hardshell Bags
- Includes all Installation Hardware and Accessories
- Direct Connect Wiring Harness to Rockford Fosgate Amplifiers
- Painted Stamped Steel Grill with ASA Plastic Frame for UV Protection
- Factory Harley-Davidson® Boom!™ Box 4.3, 6.5GT, and GTS must be flashed to use this kit
- Sandwich Clamping Gasket Design for Environmental Seal
- Includes Custom Cut Out Guide
- Patent Pending

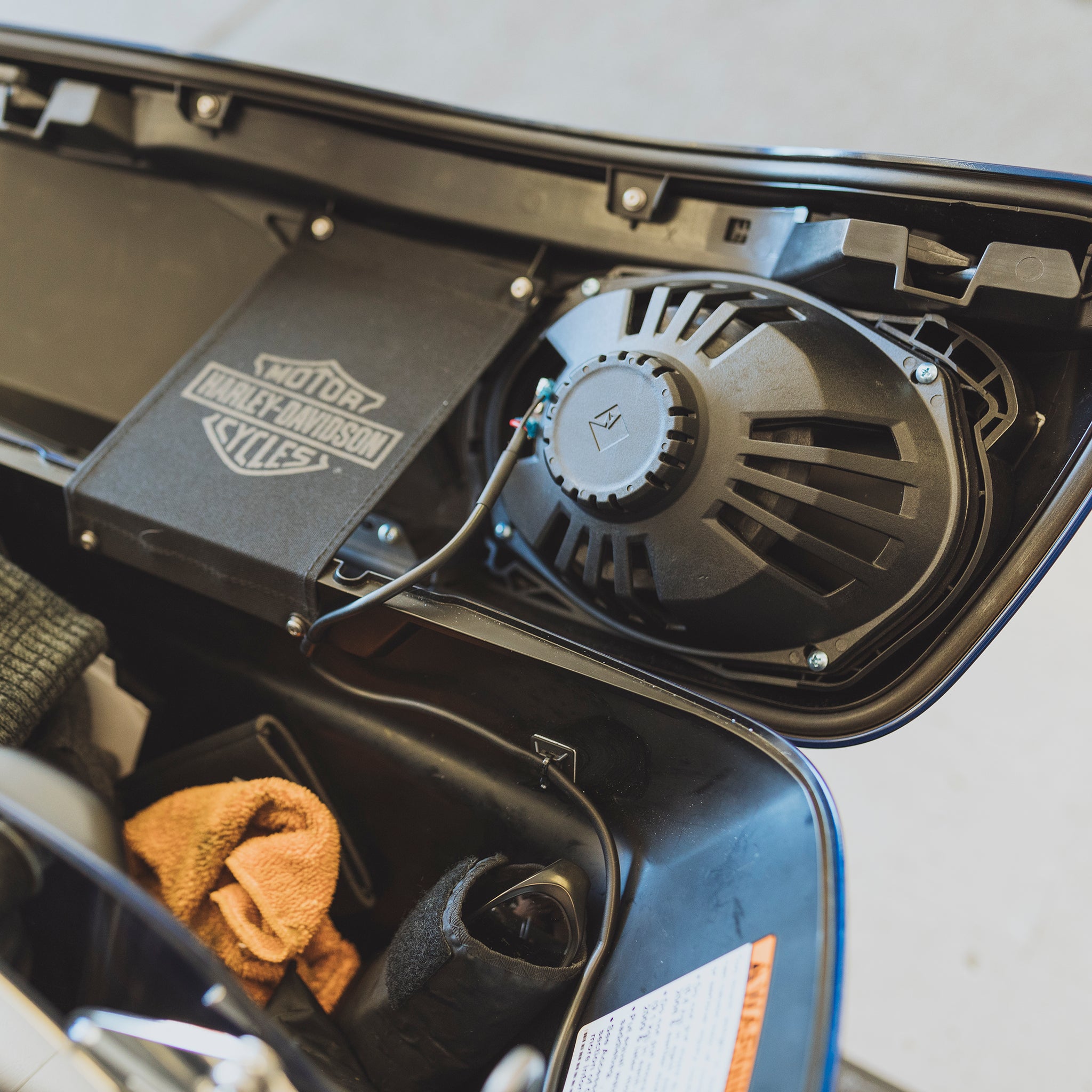

- Leave 2" minimum clearance under speaker magnet when packing bags
- Ultra‐High Temperature Glass Reinforced Polymer Frame

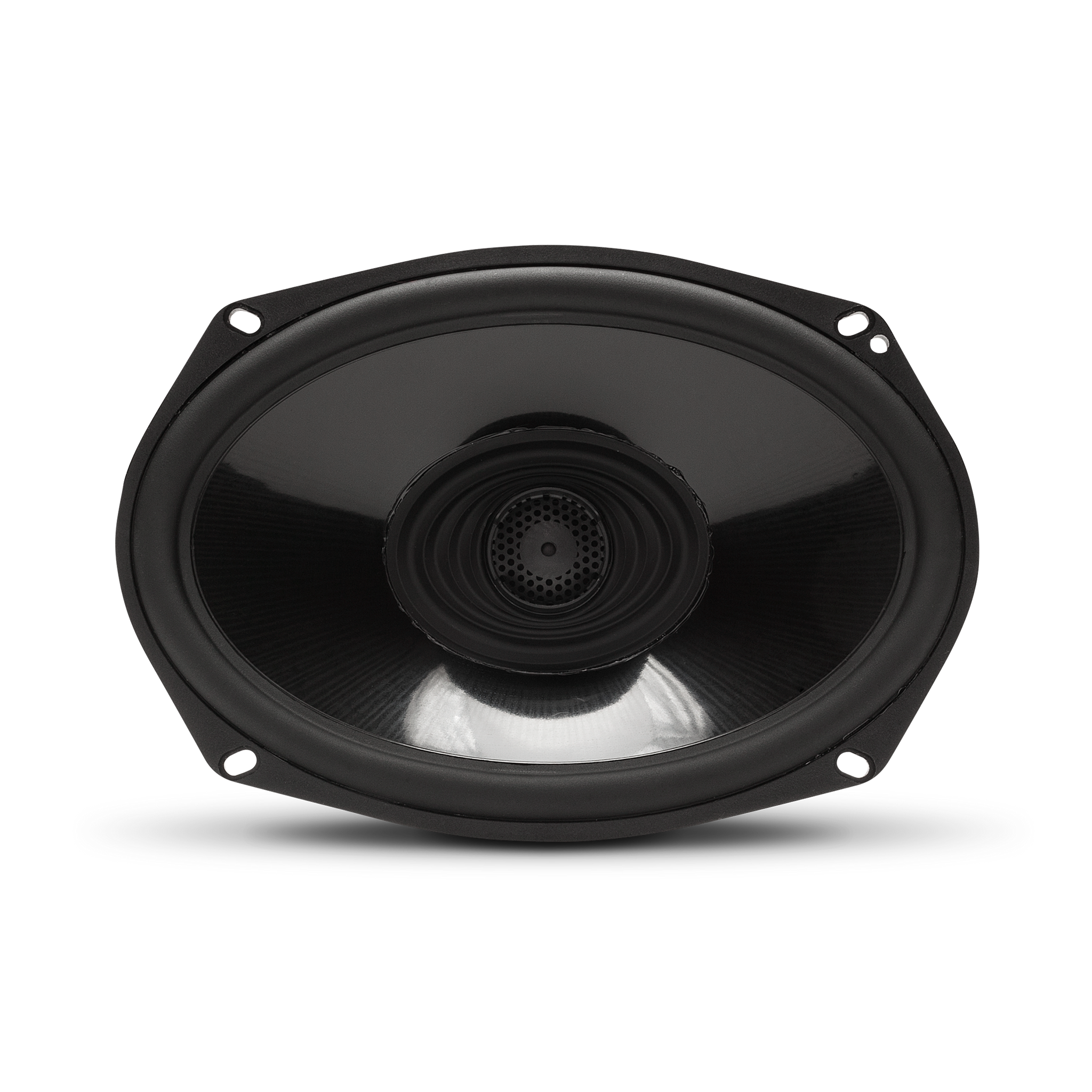

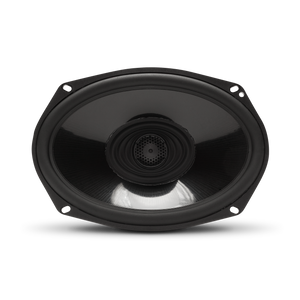

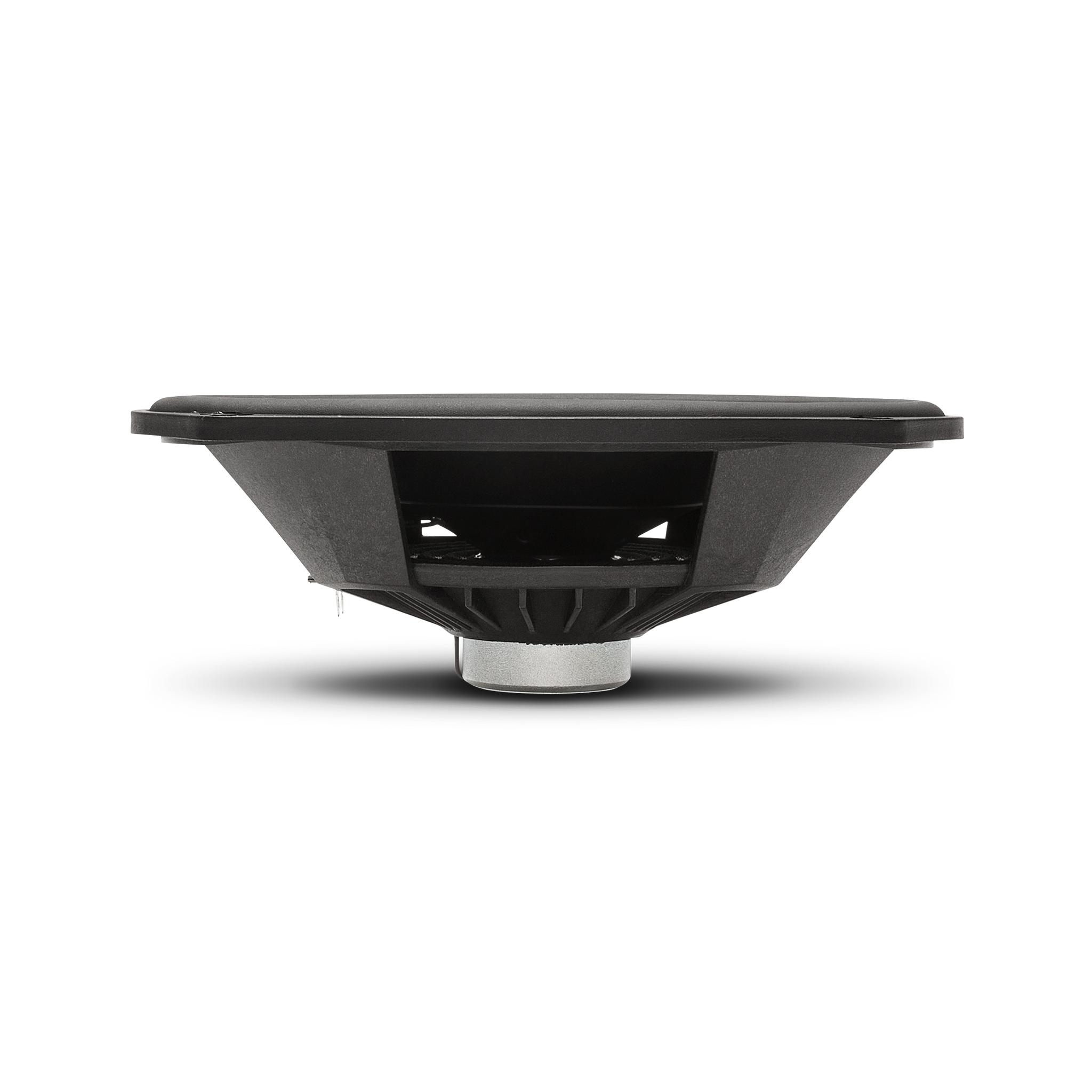

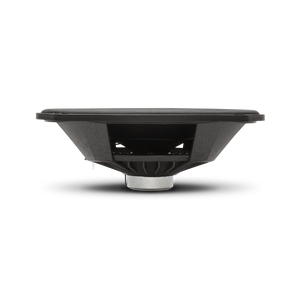

- TMS69: 6x9” Element Ready™ 2-way speakers with integrated phase-aligned 25 mm tweeter

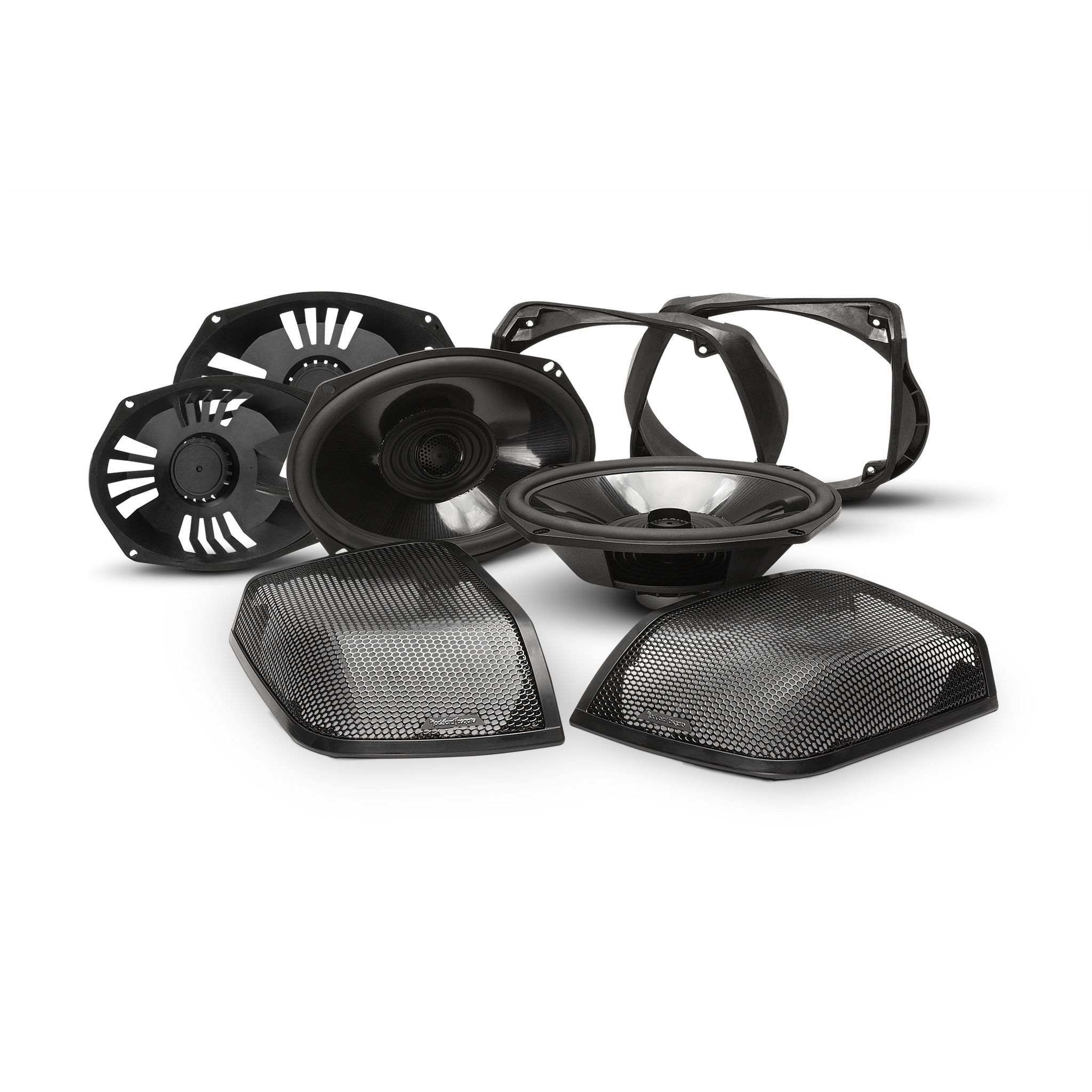

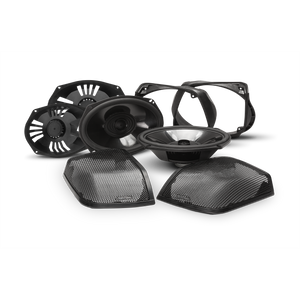

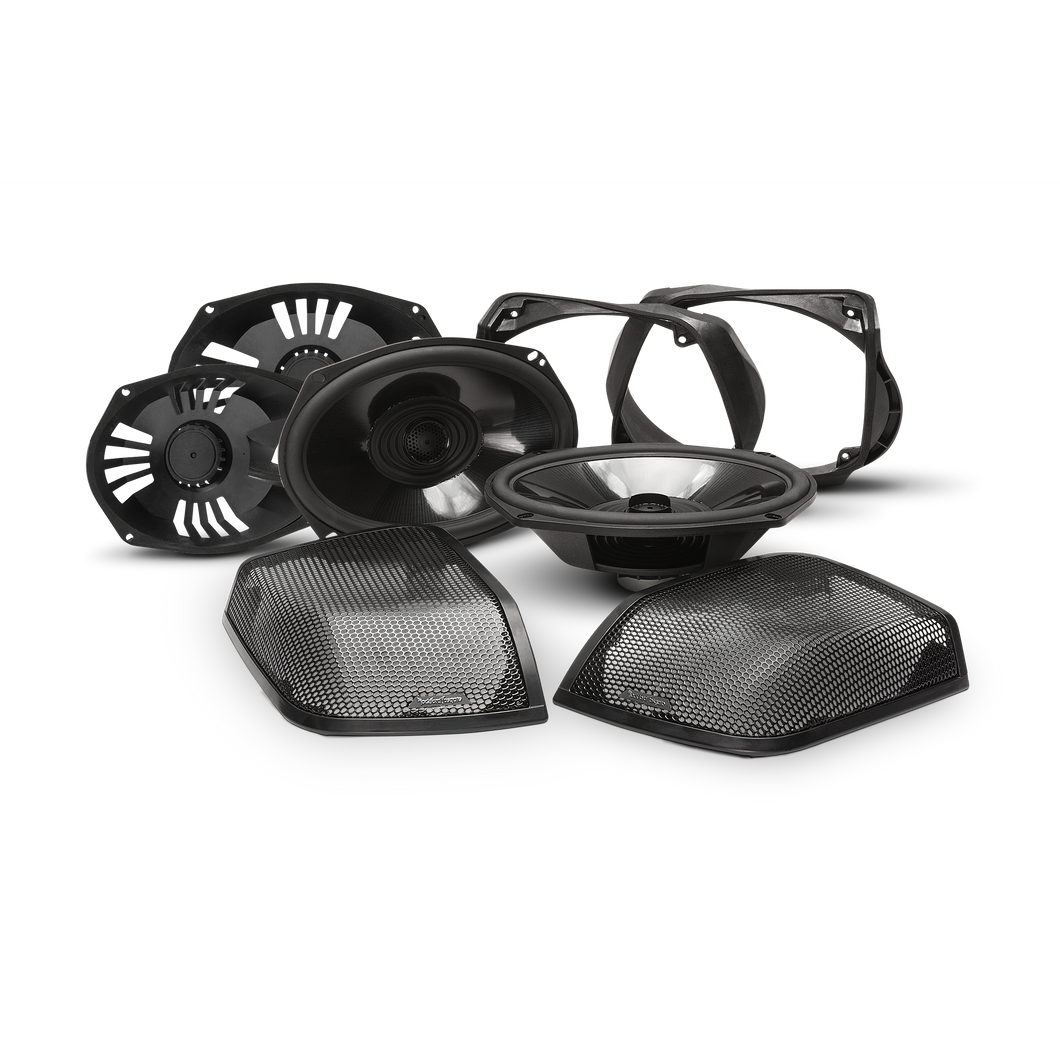

What's In The Box

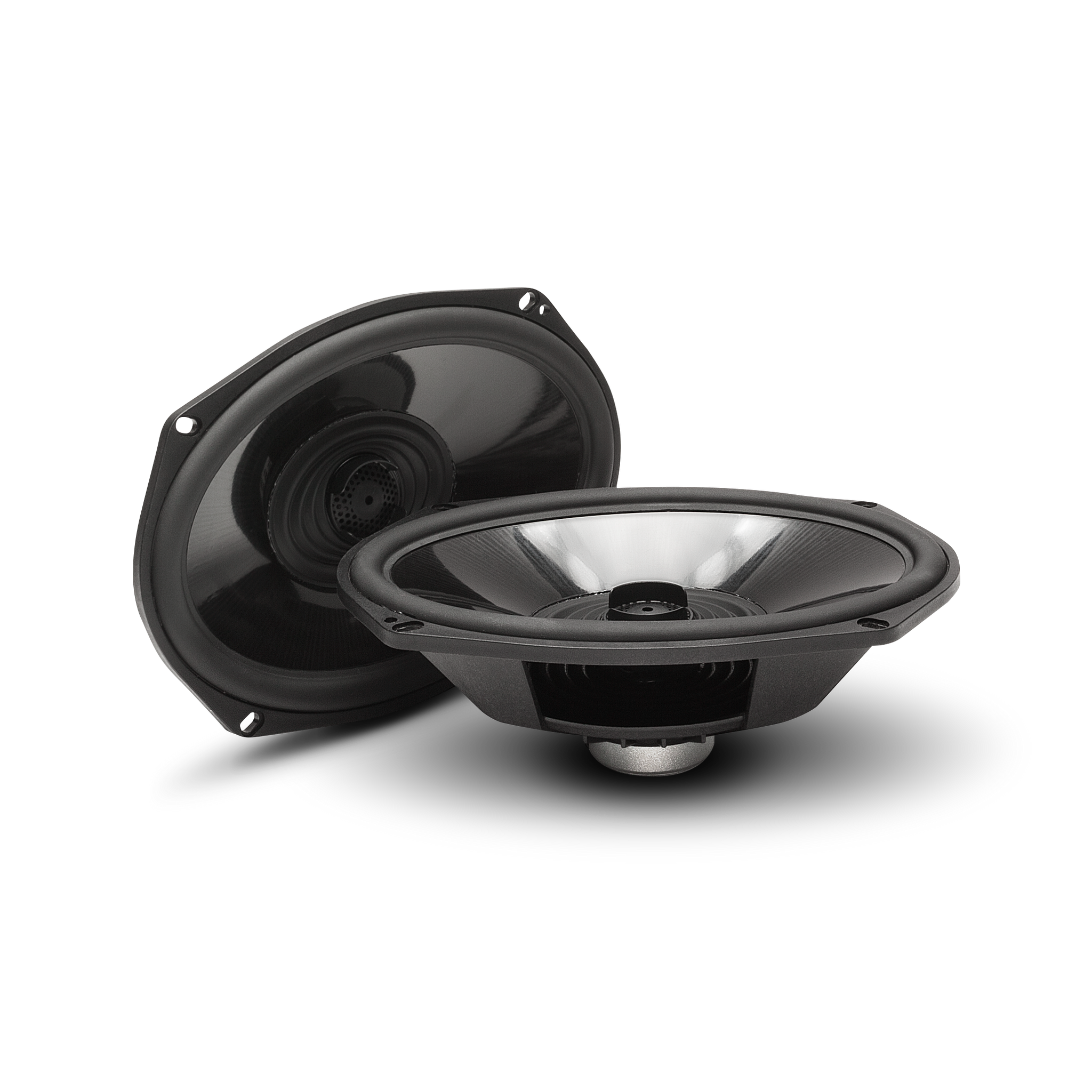

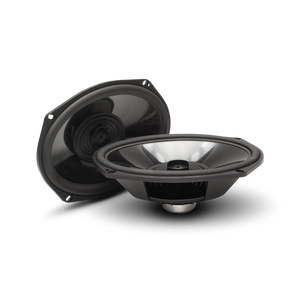

- (2) TMS69 Speakers

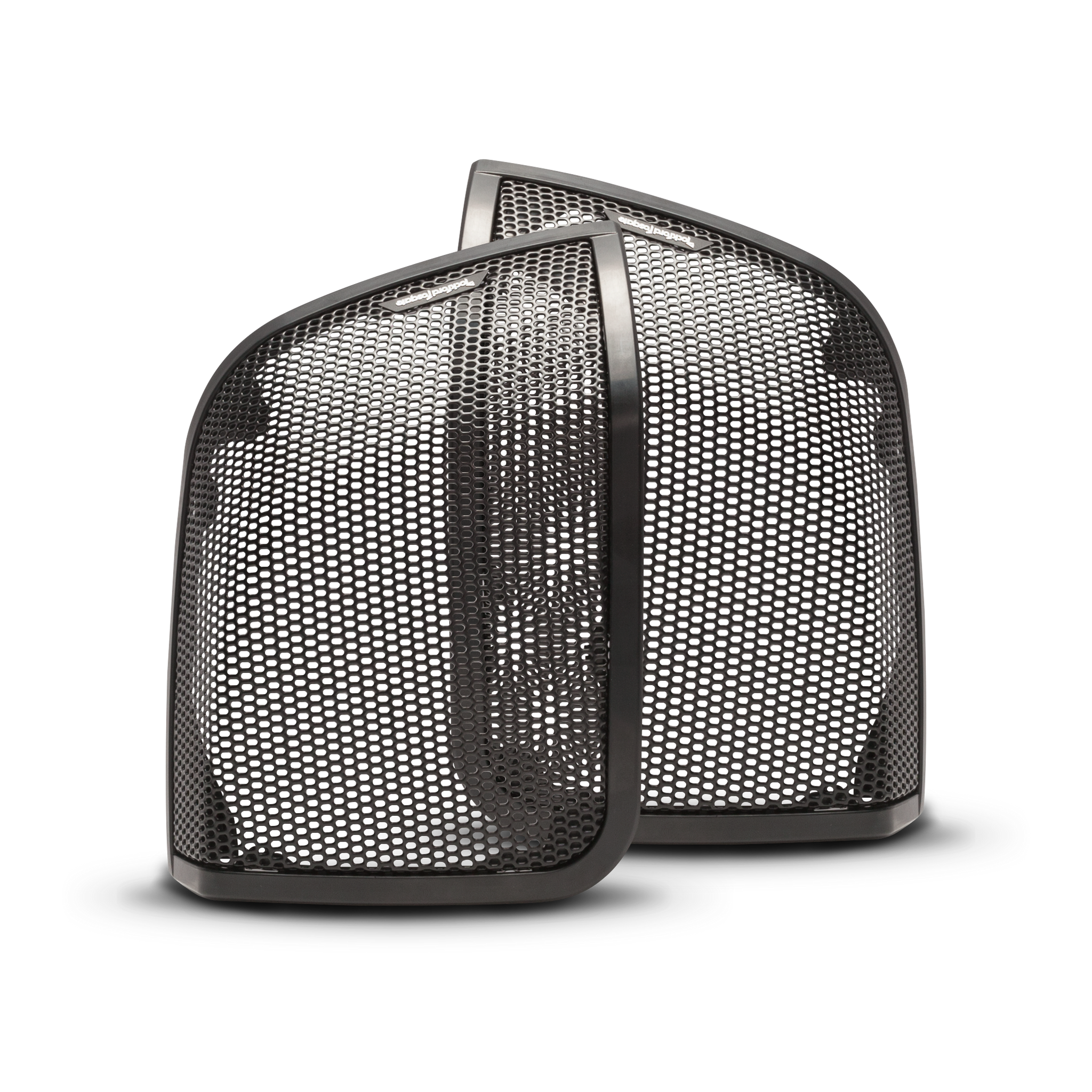

- (2) Speaker Grilles

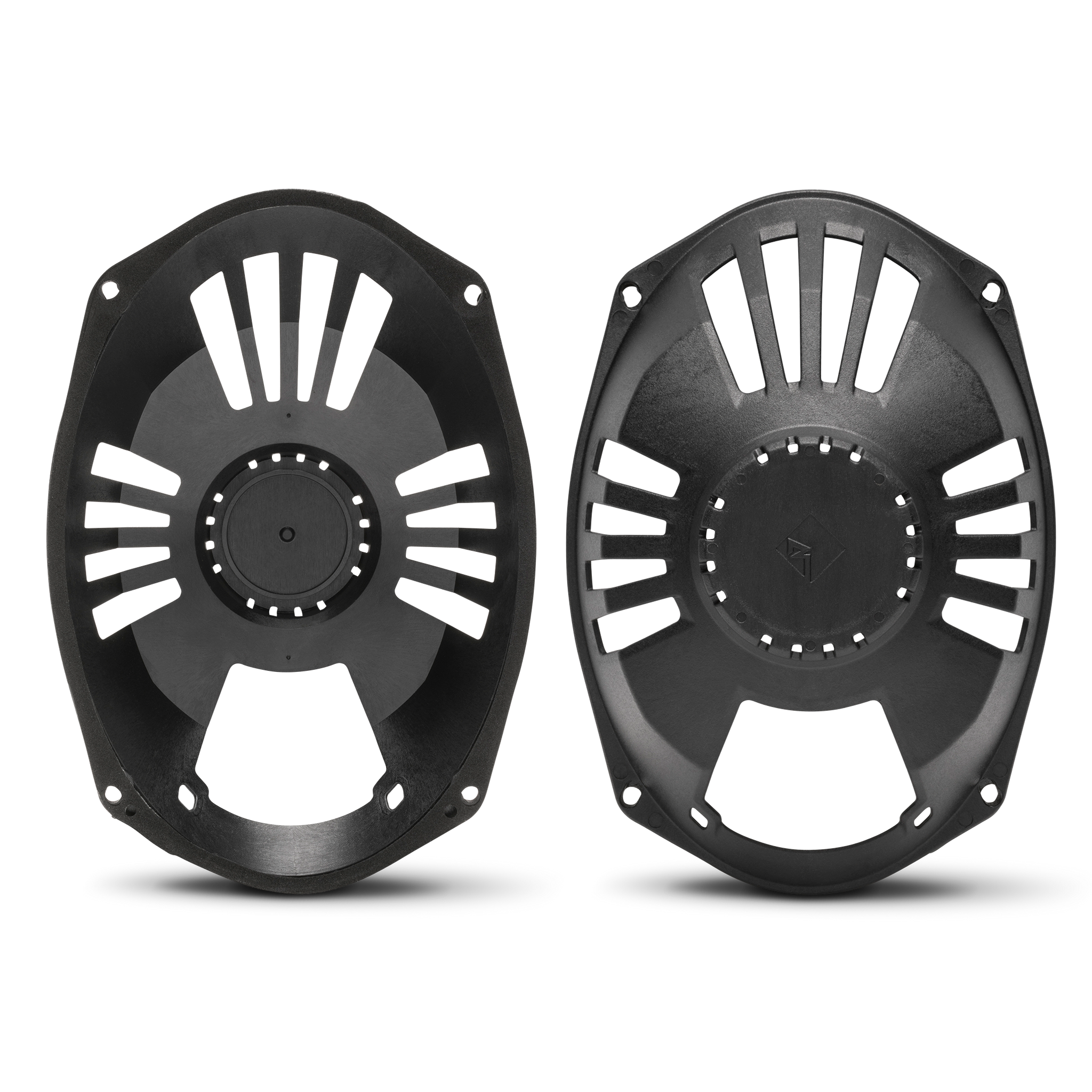

- (2) 6"x9" Basket Protectors

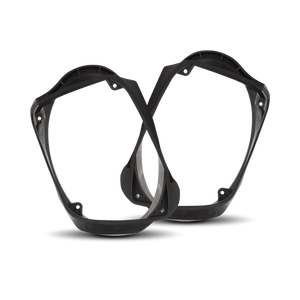

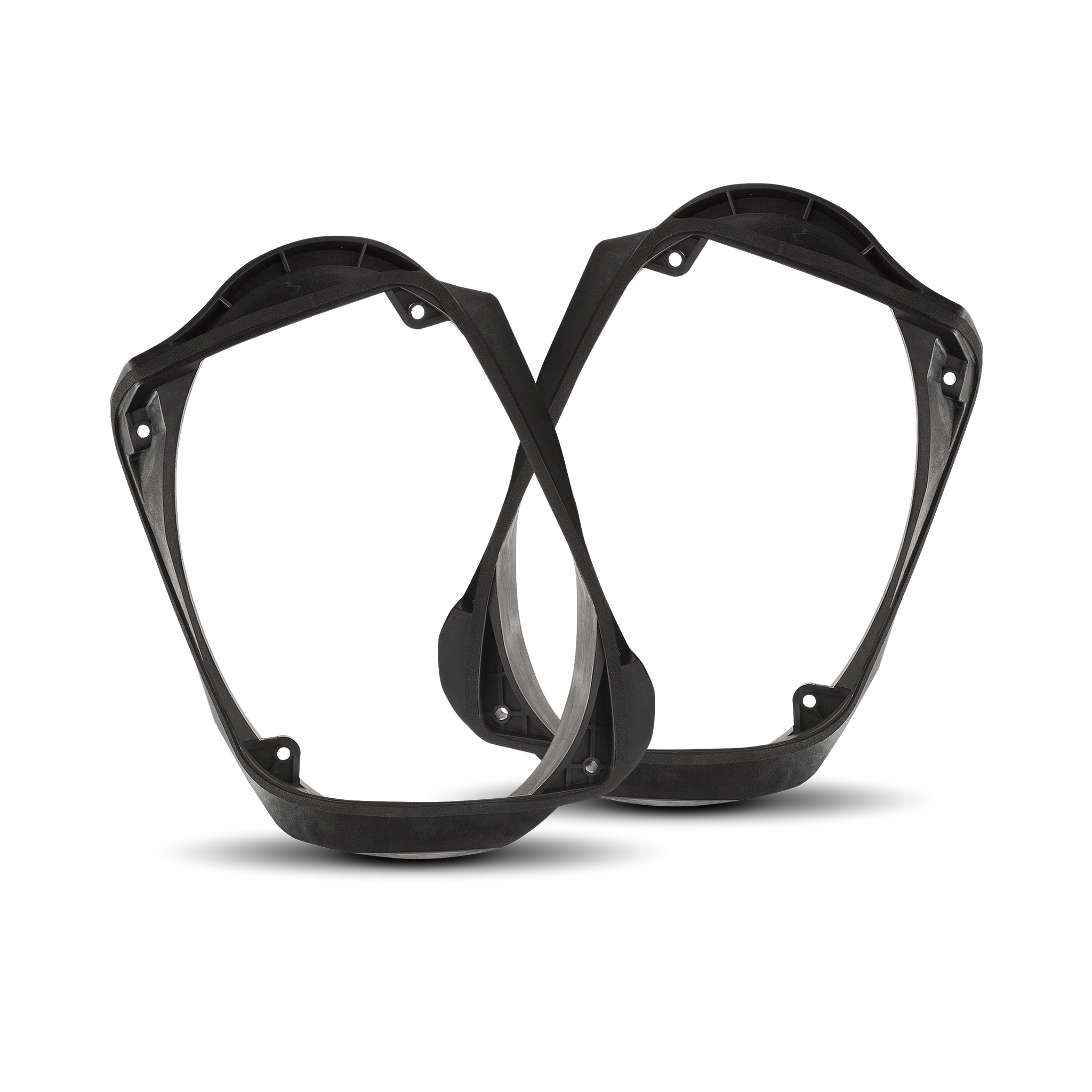

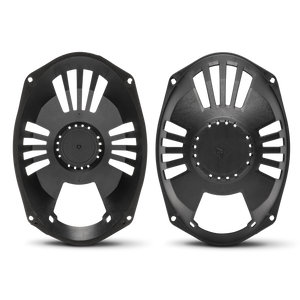

- (2) Mounting Rings
- (2) Cutting Templates
- (1) Main Harness
- (2) Saddlebag Harnesses
- Plastic Wire Tie Wraps
- Plastic Cable Tie Mounts
- (8) 1125-77147-01, Phillips Black Oxide Steel Screw with Washer, M4x1.4, 23mm L
- (12) 1125-62036-01, Pan Head Phillips Black Oxide Steel Screw, Plastic Cut, M4x1.4, 12mm L

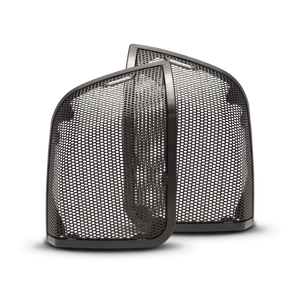

- Grill/Trim Ring
- Mounting Hardware
| YEAR | MAKE | MODEL | CHASSIS | FAIRING |
|---|---|---|---|---|
| 2015–2020 | Harley-Davidson® | CVO Road Glide® Ultra | FLTRUSE | Shark Nose |
| 2018–2020 | Harley-Davidson® | CVO Street Glide® (6-speaker) | FLHXSE | Bat Wing |
| 2014–current | Harley-Davidson® | CVO Limited | FLHTKSE | Bat Wing |
| 2014 | Harley-Davidson® | CVO Road King® | FLHRSE | — |
| 2016–2020 | Harley-Davidson® | CVO Ultra Limited | FLHTKSE | Bat Wing |
| 2014–2020 | Harley-Davidson® | CVO™ Ultra Limited Electra Glide | FLHTKSE | Bat Wing |
| 2014—current | Harley-Davidson® | Road King® | FLHR | — |
| 2017—current | Harley-Davidson® | Road King® Special | FLHRXS | — |
| 2014–2020 | Harley-Davidson® | Electra Glide® Ultra Classic® | FLHTCU | Bat Wing |
| 2014–2020 | Harley-Davidson® | Electra Glide® Ultra Limited | FLHTK | Bat Wing |
| 2021–current | Harley-Davidson® | Ultra Limited | FLHTK | Bat Wing |
| 2021–current | Harley-Davidson® | Ultra Limited Shrine Edition | FLHTK | Bat Wing |
| 2017–2020 | Harley-Davidson® | Electra Glide® Ultra Limited Low | FLHTKL | Bat Wing |
| 2015–current | Harley-Davidson® | Road Glide® | FLTRX | Shark Nose |
| 2021–2022 | Harley-Davidson® | Road Glide® Limited | FLTRK | Shark Nose |
| 2015–current | Harley-Davidson® | Road Glide® Special | FLTRXS | Shark Nose |
| 2022–current | Harley-Davidson® | Road Glide® ST | FLTRXST | Shark Nose |
| 2015–2020 | Harley-Davidson® | Road Glide® Ultra | FLTRU | Shark Nose |
| 2014–current | Harley-Davidson® | Street Glide® | FLHX | Bat Wing |
| 2014–current | Harley-Davidson® | Street Glide® Special | FLHXS | Bat Wing |
| 2022–current | Harley-Davidson® | Street Glide® ST | FLHXST | Bat Wing |
1 Factory Radio from Harley-Davidson® must be flashed. Read advisory for more information.
2 H-D® Power Lock for touring luggage not compatible with 6x9" bag-lid kit.
3 Saddlebags must be factory Harley-Davidson® ABS plastic to insure proper fitment with bag-lid and subwoofer kits. Fiberglass saddlebags and bag-lids not compatible.
4 Stretched Saddlebags not optimized for kits with subwoofers. Contact technical support for suggested harness brace.
5 Tour-Pak® must be detached in order to install and remove subwoofer enclosures.
NR No Radio equipped from factory.
RF1 RF Stage I: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and saddlebag amplifier.
RF2 RF Stage II: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and saddlebag amplifier.
RF1G2 RF Stage I Gen-2: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and saddlebag amplifier.
RF2G2 RF Stage II Gen-2: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and saddlebag amplifier.
We always recommend a qualified Harley-Davidson technician install these systems. However, if you would like to try to install this yourself here are some great videos about the products, step by step installation videos and tuning guide to help you.
Rockford Fosgate Canada Limited 2-Year Warranty
