The next step in motorcycle performance, our M5 audio kits are the loudest and clearest audio systems created by Rockford Fosgate. Featuring simple plug-and-play installation and paired with freeway speed output all create the best in class on bike audio experience.
Plug-and-Play Design: Designed to work right out of the box. Everything is included to make for easy installation and all to ensure less time in the garage and more time out riding.
Full Throttle Output: Audio engineered to perform on the open road. Speakers and amplifiers specifically tuned and designed to not only overcome wind, road, and exhaust noise, but to give you that second to none audio experience on your bike.
RF3 (Rockford Factory Fit and Finish): Designed and engineered to match and compliment the factory fit and finish of your bike. These components are purpose built to the exact specifications to ensure the best-in-class fitment and look.
Element Ready™: Purpose built for the harsh motorcycle environment. The speakers and amplifier are designed to stand up to water, dirt, UV, and motorcycle vibration, ensuring that your audio system will stand the test of time.
Flexible Bass System: Sound when you want it, space when you need it. This patent pending design allows you to remove one or both subwoofers easily with no tools. So, if you need your bags for a long ride, this flexible system allows for just that

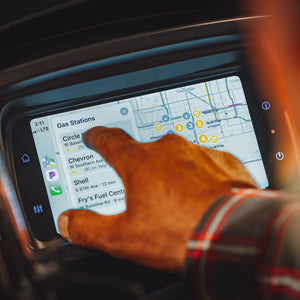

Bluetooth Control: The source unit features an ultra-bright 7-inch display and provides class leading features including, day/night modes, oversized buttons easy mode selection, and is SiriusXM ready.
Compatibility: Please review above fitment tab before purchasing.
PMX-HD14 | Product Overview M5 Audio Kits | Product Overview
UNRELENTING PERFORMANCE
The HD14-STG5 is a high-performance 6-speaker, 1,600-watt amplified audio system with dual subwoofers that includes:
• (1) infotainment source unit

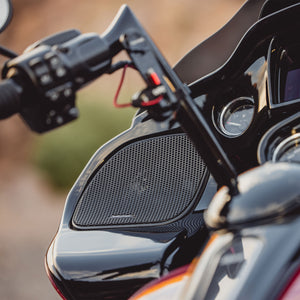

• (2) 6.5" fairing speakers
• (2) 6x9" saddlebag speakers
• (2) 10" saddlebag subwoofers
• (2) 800W 4-channel amps
• (2) amp installation kits
Refer to our FITMENT Tab to verify fitment before purchasing.
FEATURES AT A GLANCE
- Plug and Play design for easy installation
- Kits bolt to factory attachment points
- 2014-2023 Harley-Davidson® direct replacement digital media receiver
- PMX-HD14: Infotainment Source Unit for Select 2014-2023 Harley-Davidson® Models
- Retains factory thumb control functionality with no additional parts
- TMS69BL14: 6x9” Element Ready™ saddlebag retrofit kit for factory H-D® PVC bags
- TMS65: 6.5" 2-way Element Ready™ speaker with integrated phase-aligned 25 mm tweeter
- HD14-SBSUB: Dual 10" saddlebag subwoofer system with dedicated M5-800X4 amplifier
- Sub Enclosure creates dual air space to keep 6x9" speakers separate from 10" subs
- Enclosure pre-loaded with 10" Element Ready™ M1D2-10B (no-RGB model)
- Subwoofer kit includes grille sealing plug if enclosures need to be removed for touring
- RFK-HD14M5: Amp install kit for M5-800X4 on 2014-2023 Harley-Davidson® models

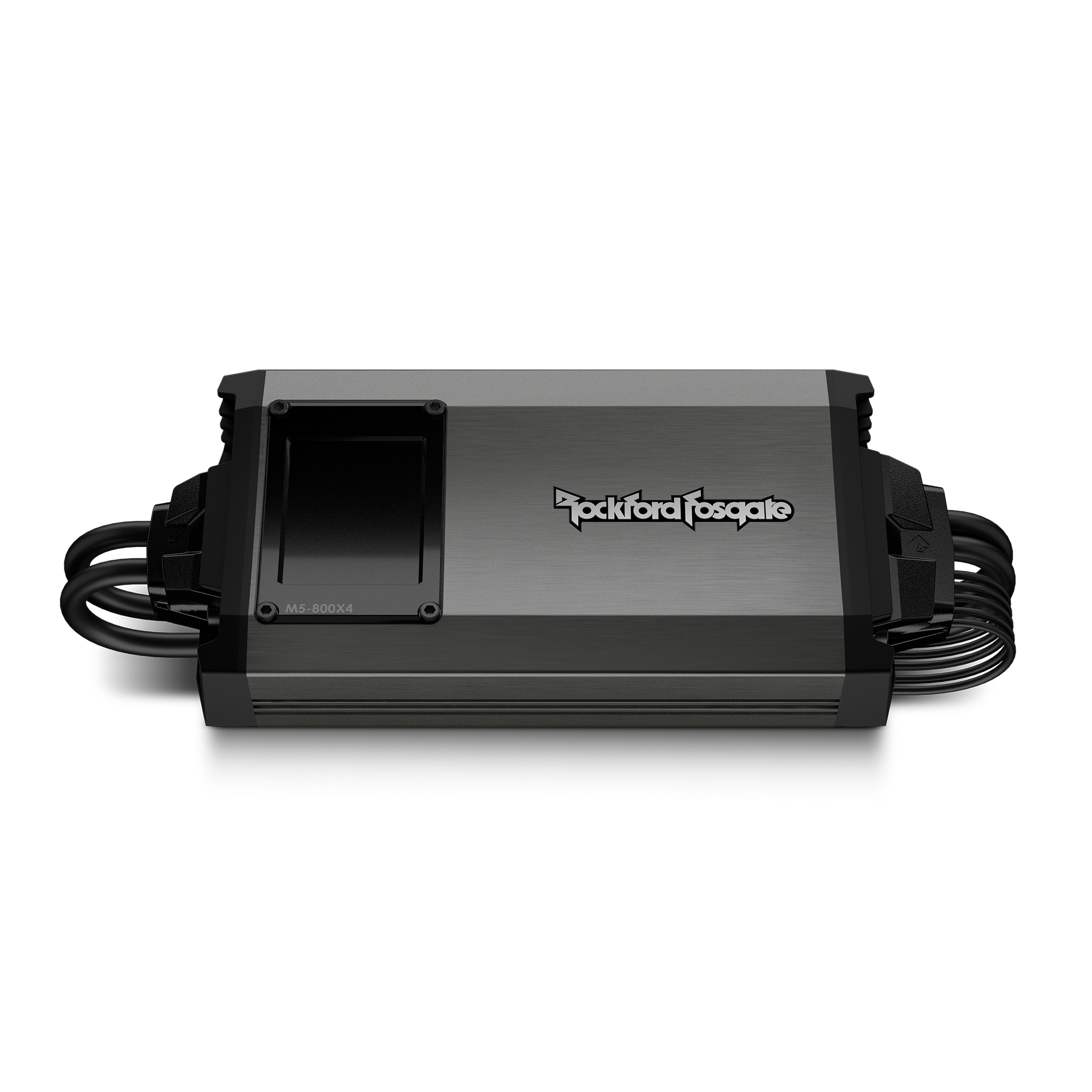

- M5-800X4: 800-watt 4-channel IPX6 Element Ready™ amplifier
- No need to "flash" your radio
- Speakers custom tuned to hear music over wind, road & exhaust noise at highway speed
- Direct connect wiring harnesses for Harley-Davidson® models
- T-harness features loop-thru for Digital Signal Processor (DSR1 sold separately)
- T-harness supports front/rear fader (requires flash: "Rockford Fosgate 2014-2023 All Bikes")
- Y-adaptors supports expansion of speakers in lower fairing, saddlebag, or Tour-Pak®
- 90-degree harness included with amp install kit for Road Glide® installations
- RATS (Rockford Automated Testing System) proprietary quality & performance tested
- Klippel Verified certification program delivers the best possible loudspeakers
Fits 2014-2023 Touring models with fairing
NOT CVO or Trike, HD14U-STG2 is better equipped for these models.
The wiring harness included in this kit is designed to interface only with factory Harley-Davidson® radios or Harley-Davidson® compatible after-market radios such as Rockford Fosgate PMX-HD14 or Precision Power HDHU.14. The factory Harley-Davidson® radio must be flashed or you will damage your speakers.
This audio kit is only compatible with standard sized Harley-Davidson® ABS plastic saddlebags and lids. Stretched Harley-Davidson® ABS saddlebags not optimized for kits with subwoofers. Contact technical support for suggested harness brace.
1 Boom! Audio un-amplified systems are compatible.
2 Boom! Audio Stage I & Stage II systems with external amplifier(s) are not compatible.
3 Saddlebags must be factory Harley-Davidson® ABS plastic to insure proper fitment with bag-lid and subwoofer kits. Fiberglass saddlebags and bag-lids not compatible.
4 Stretched Saddlebags not optimized for kits with subwoofers. Contact technical support for suggested harness brace.
5 H-D® Power Lock for touring luggage not compatible with 6x9" bag-lid kit.
NR No Radio equipped from factory. Make compatible with (2) Harley-Davidson #69200247 fairing speaker harnesses, PMX-HD14 source unit, and TMS65 speakers.
RF1 RF Stage I: Upgradable radio only. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and saddlebag amplifier.
RF2 RF Stage II: Upgradable radio only. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and saddlebag amplifier.
SKYRF1 Skyline RF Stage I: Not upgradable. Factory equipped with Skyline OS and "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and fairing amplifier.
SKYRF2 Skyline RF Stage II: Not upgradable. Factory equipped with Skyline OS and "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and fairing amplifier.
We always recommend a qualified Harley-Davidson technician install these systems. However, if you would like to try to install this yourself here are some great videos about the products, step by step installation videos and tuning guide to help you.
2014-2023 Street Glide PMX-ST5 | Installation 2015+ Road Glide PMX-STG5 | Installation PMX-HD14 | Quick Start Guide
M5 2014-2023 Amp | Tuning GuideM5 2014-2023 Sub Amp | Tuning Guide
PMX-HD14 | Software Updates
