The next step in motorcycle performance, our M5 audio kits are the loudest and clearest audio systems created by Rockford Fosgate. Featuring simple plug-and-play installation and paired with freeway speed output all create the best in class on bike audio experience.
Plug-and-Play Design: Designed to work right out of the box. Everything is included to make for easy installation and all to ensure less time in the garage and more time out riding.
Full Throttle Output: Audio engineered to perform on the open road. Speakers and amplifiers specifically tuned and designed to not only overcome wind, road, and exhaust noise, but to give you that second to none audio experience on your bike.
RF3 (Rockford Factory Fit and Finish): Designed and engineered to match and compliment the factory fit and finish of your bike. These components are purpose built to the exact specifications to ensure the best-in-class fitment and look.
Element Ready™: Purpose built for the harsh motorcycle environment. The speakers and amplifier are designed to stand up to water, dirt, UV, and motorcycle vibration, ensuring that your audio system will stand the test of time.
Flexible Bass System: Sound when you want it, space when you need it. This patent pending design allows you to remove one or both subwoofers easily with no tools. So, if you need your bags for a long ride, this flexible system allows for just that
Compatibility: Please review above fitment tab before purchasing.
M5 Audio Kits | Product Launch M5 Audio Kits| Product Overview
UNRELENTING PERFORMANCE

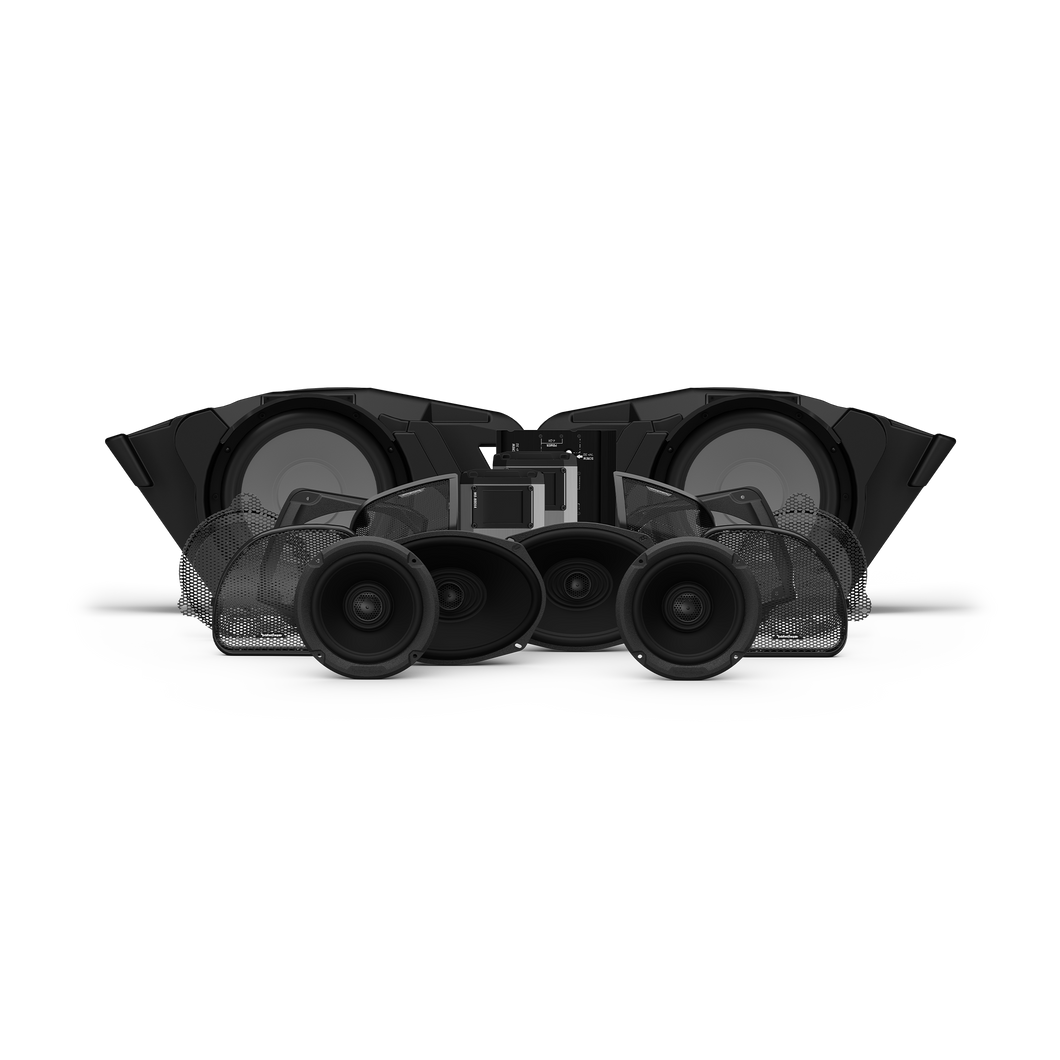

The HD14-STG5 is a high-performance 6-speaker, 1,600-watt amplified audio system with dual subwoofers that includes:
• (2) 6.5" fairing speakers
• (2) 6x9" saddlebag speakers
• (2) 10" saddlebag subwoofers
• (2) 800W 4-channel amps
• (2) amp installation kits
You MUST flash your factory radio to use this kit. Refer to our FITMENT Tab to verify fitment before purchasing.
FEATURES AT A GLANCE
- Plug and Play design for easy installation
- Kits bolt to factory attachment points
- Speakers custom tuned to hear music over wind, road & exhaust noise at highway speed
- Direct connect wiring harnesses for Harley-Davidson® models
- TMS65: 6.5" 2-way Element Ready™ speaker with integrated phase-aligned 25 mm tweeter
- Enclosure pre-loaded with 10" Element Ready™ M1D2-10B (no-RGB model)
- RFK-HD14M5: Amp install kit for M5-800X4 on 2014+-2023 Harley-Davidson® models
- M5-800X4: 800-watt 4-channel IPX6 Element Ready™ amplifier
- TMS69BL14: 6x9” Element Ready™ saddlebag retrofit kit for factory H-D® PVC bags
- Subwoofer kit includes grille sealing plug if enclosures need to be removed for touring
- T-harness features loop-thru for Digital Signal Processor (DSR1 sold separately)
- T-harness supports front/rear fader (requires flash: "Rockford Fosgate 2014+-2023 All Bikes")
- Y-adaptors supports expansion of speakers in lower fairing, saddlebag, or Tour-Pak®
- HD14-SBSUB: Dual 10" saddlebag subwoofer system with dedicated M5-800X4 amplifier
- Sub Enclosure creates dual air space to keep 6x9" speakers separate from 10" subs
- 90-degree harness included with amp install kit for Road Glide® installations
- Klippel Verified certification program delivers the best possible loudspeakers
- RATS (Rockford Automated Testing System) proprietary quality & performance tested
- Factory Harley-Davidson® Boom!™ Box 4.3, 6.5GT, and GTS must be flashed to use this kit
Fits 2014+-2023 Touring models with fairing
NOT CVO or Trike, HD14U-STG2 is better equipped for these models.
The wiring harness included in this kit is designed to interface only with factory Harley-Davidson® radios or Harley-Davidson® compatible after-market radios such as Rockford Fosgate PMX-HD14 or Precision Power HDHU.14. The factory Harley-Davidson® radio must be flashed or you will damage your speakers.
This audio kit is only compatible with standard sized Harley-Davidson® ABS plastic saddlebags and lids. Stretched Harley-Davidson® ABS saddlebags not optimized for kits with subwoofers. Contact technical support for suggested harness brace.
We always recommend a qualified Harley-Davidson technician install these systems. However, if you would like to try to install this yourself here are some great videos about the products, step by step installation videos and tuning guide to help you.
2014+-2023 Road Glide STG5 | Installation 2014+-2023 Street Glide STG5 | Installation
M5 2014+-2023 Amp | Tuning Guide M5 2014+-2023 Subwoofer Amp | Tuning Guide
Rockford Fosgate Canada Limited 2-Year Warranty
Return Authorization Process
Diagnose First
Prior to requesting an RA, try to diagnose the failure. Many products we receive are sent back with No Trouble Found, usually due to incorrect installation. Use our Knowledge Base for troubleshooting assistance.
Contact Customer Support
Please call us during normal business hours at 1-800-669-9899 (option #1) and be prepared with the following information:
- First and Last Name with complete Shipping Address
- Product Name (T0D415)
- Serial Number (12 or 13 digit number)
- Failure Diagnosis (no output, no power LED, etc.)
- Scanned copy of Original Receipt emailed to cs.support@rockfordcorp.com (dealer name, purchase date, and item purchased must be legible)
- Credit/Debit Card (if paying for out-of-warranty claims)
- No money orders or checks.
Shipping Instructions
When shipping your product, your package MUST have the following information:
- RA# Printed Outside of Box (as large as possible)
- Copy of Original Receipt
Shipping Address
Ship your product (UPS or FedEx preferred) to the following:
Rockford/ AJR International300 Regency DR
Glendale Heights, IL 60139
RA#:_______________________
